# DFRobot Gravity Flexible RGB LED Matrix

> Flexible addressable RGB LED matrix panel with I2C control and Gravity connector, available in 8x8, 8x32, and 16x16 configurations for visual displays and lighting projects.

## Quick Facts

- **Brand:** DFRobot
- **Board Type:** module
- **Price:** ~$32.99
- **Product Readiness:** consumer
- **CPU:** N/A (passive LED module)
- **RAM:** N/A
- **Flash:** N/A
- **Power:** 5V DC
- **Operating Voltage:** 3.3V/5V

## Open Source

- **Firmware:** No
- **Schematics:** No
- **PCB Layout:** No

## Use Cases

- LED Signage
- Visual Effects
- IoT Display
- Wearables
- Art Installation

## Components

- **Addressable RGB LED** (LED): Individually controllable RGB LED array on flexible PCB for full-color display — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.dfrobot.com%2Fproduct-2649.html&ref=openhardware.directory&product=dfrobot-gravity-rgb-led-matrix&source=md-export)

## Protocols

- **I2C**

## Description

## Overview

The DFRobot Gravity Flexible RGB LED Matrix is a versatile addressable LED panel designed for visual display projects. It uses the Gravity I2C interface for easy connection to Arduino, Raspberry Pi, and other microcontrollers. The flexible PCB allows it to conform to curved surfaces.

## Available Configurations

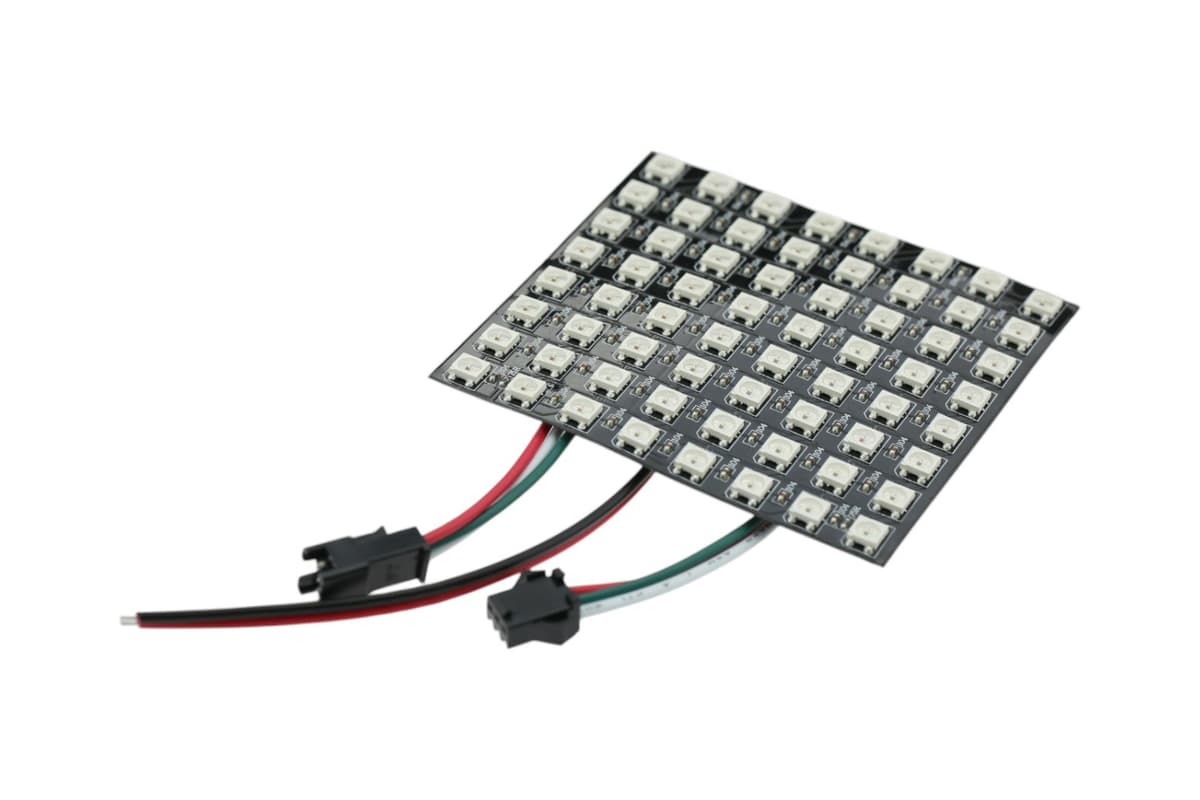

- **8x8** (64 LEDs) - compact square matrix
- **8x32** (256 LEDs) - elongated scrolling text display
- **16x16** (256 LEDs) - larger square matrix for detailed graphics

## Features

- Flexible PCB substrate that can bend to curved surfaces
- I2C interface via Gravity connector for simple wiring
- Individually addressable RGB LEDs for full-color control
- Chainable for larger display configurations
- Compatible with Arduino, Raspberry Pi, and ESP32 boards

## Getting Started

Connect the matrix to your microcontroller using the Gravity I2C cable. Use the DFRobot Arduino library to control individual pixels, display text, animations, and patterns.

## Where to Buy

- [OpenELab](https://openhardware.directory/r?to=https%3A%2F%2Fopenelab.io%2Fproducts%2Fdfrobot-gravity-rgb-led-matrix&ref=openhardware.directory&product=dfrobot-gravity-rgb-led-matrix&source=md-export) — $32.99

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.dfrobot.com%2Fproduct-1557.html&ref=openhardware.directory&product=dfrobot-gravity-rgb-led-matrix&source=md-export)

## Tags

`led-matrix`, `rgb`, `i2c`, `gravity`, `dfrobot`, `addressable-led`, `display`

## Images

![DFRobot Gravity Flexible RGB LED Matrix](https://nbg1.your-objectstorage.com/openhardware-directory/entities/dfrobot-gravity-rgb-led-matrix/f14927c5a0a5.jpg)
![DFRobot Gravity Flexible RGB LED Matrix](https://nbg1.your-objectstorage.com/openhardware-directory/entities/dfrobot-gravity-rgb-led-matrix/d7510e63470a.jpg)
![DFRobot Gravity Flexible RGB LED Matrix](https://nbg1.your-objectstorage.com/openhardware-directory/entities/dfrobot-gravity-rgb-led-matrix/16de4c2f4f15.jpg)
![DFRobot Gravity Flexible RGB LED Matrix](https://nbg1.your-objectstorage.com/openhardware-directory/entities/dfrobot-gravity-rgb-led-matrix/ccb125b90d44.jpg)
![DFRobot Gravity Flexible RGB LED Matrix](https://nbg1.your-objectstorage.com/openhardware-directory/entities/dfrobot-gravity-rgb-led-matrix/7e0db60beb9a.jpg)
![DFRobot Gravity Flexible RGB LED Matrix](https://nbg1.your-objectstorage.com/openhardware-directory/entities/dfrobot-gravity-rgb-led-matrix/9954b85711c3.jpg)
![DFRobot Gravity Flexible RGB LED Matrix](https://nbg1.your-objectstorage.com/openhardware-directory/entities/dfrobot-gravity-rgb-led-matrix/96373fd4067c.jpg)
![DFRobot Gravity Flexible RGB LED Matrix](https://nbg1.your-objectstorage.com/openhardware-directory/entities/dfrobot-gravity-rgb-led-matrix/e891a450d6fa.jpg)

---
