# WS2812B RGB LED Ring (12-Bit, 50mm)

> 12-LED addressable WS2812B RGB ring in a 50mm form factor, running on 5V with single-wire data control — perfect for status indicators, wearables, and visual effects.

## Quick Facts

- **Brand:** OpenELab
- **Board Type:** module
- **Price:** ~$5.99
- **Product Readiness:** consumer
- **CPU:** N/A (passive LED module)
- **RAM:** N/A
- **Flash:** N/A
- **Power:** 5V DC
- **Operating Voltage:** 5V

## Open Source

- **Firmware:** No
- **Schematics:** No
- **PCB Layout:** No

## Use Cases

- Visual Effects
- Status Indicator
- Wearables
- Art Installation
- IoT Display

## Components

- **WS2812B** (LED): Individually addressable RGB LED with integrated driver IC, 24-bit color, 800kbps data rate — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fcdn-shop.adafruit.com%2Fdatasheets%2FWS2812B.pdf&ref=openhardware.directory&product=ws2812b-rgb-led-ring&source=md-export)

## Protocols

- **Single-Wire**

## Description

## Overview

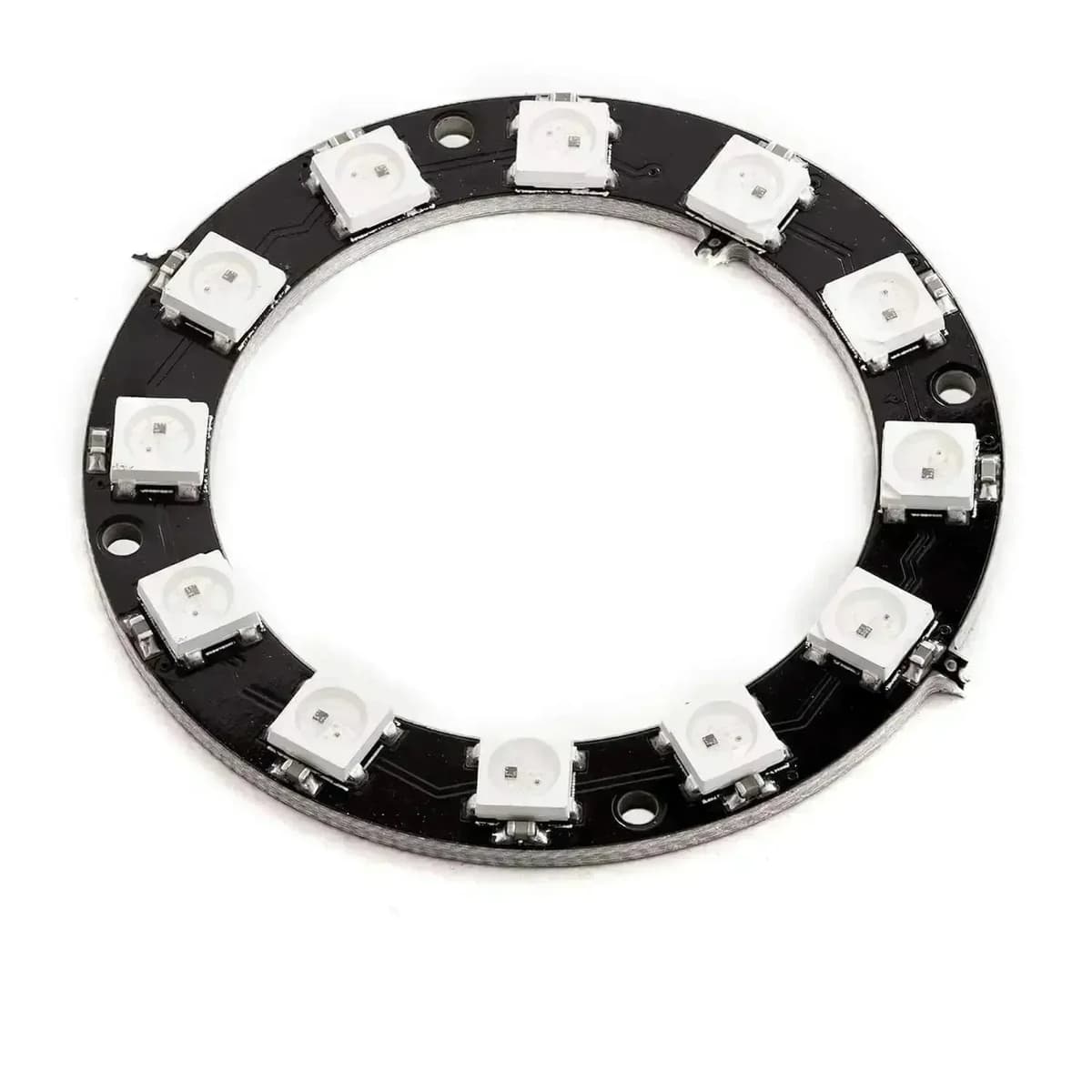

The WS2812B RGB LED Ring is a circular PCB with 12 individually addressable WS2812B RGB LEDs arranged in a 50mm diameter ring. Each LED can display any color from a 24-bit palette (16.7 million colors), controlled via a single data wire. Multiple rings can be daisy-chained for larger configurations.

## Key Specifications

| Parameter | Value |
|-----------|-------|
| LED Type | WS2812B (addressable RGB) |
| LED Count | 12 per ring |
| Diameter | 50mm |
| Operating Voltage | 5V DC |
| Data Interface | Single-wire (NeoPixel compatible) |
| Color Depth | 24-bit (8-bit per channel) |

## Features

- Individually addressable — control each LED's color and brightness independently
- Single data wire control — minimal wiring
- Chainable — connect multiple rings for complex designs
- NeoPixel/FastLED library compatible
- Compact 50mm ring form factor

## Getting Started

Connect VCC to 5V, GND to ground, and DIN to a digital pin on your Arduino or ESP32. Use the Adafruit NeoPixel or FastLED library to control colors and animations.

## Where to Buy

- [OpenELab](https://openhardware.directory/r?to=https%3A%2F%2Fopenelab.io%2Fproducts%2Fled-ring-rgb&ref=openhardware.directory&product=ws2812b-rgb-led-ring&source=md-export) — $5.99

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fopenelab.io%2Fproducts%2Fled-ring-rgb&ref=openhardware.directory&product=ws2812b-rgb-led-ring&source=md-export)

## Tags

`led-ring`, `ws2812b`, `neopixel`, `rgb`, `addressable-led`, `visual-effects`
