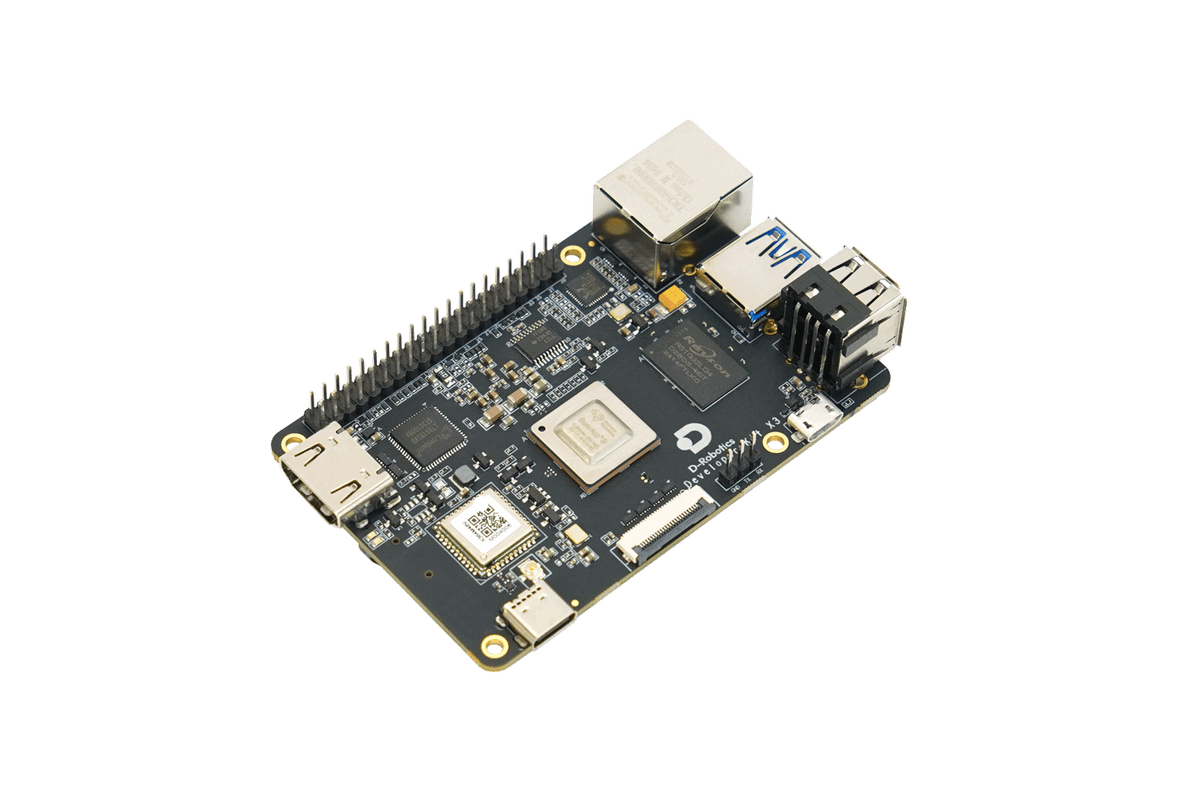

# D-Robotics RDK X3

> AI-focused single board computer with 5 TOPS NPU, quad-core ARM Cortex-A53, 4GB LPDDR4, dual MIPI CSI cameras, and ROS2 support for robotics and edge AI.

## Quick Facts

- **Brand:** D-Robotics
- **Price:** ~$80
- **Product Readiness:** Consumer Ready
- **CPU:** ARM Cortex-A53 quad-core @ 1.5GHz + 5 TOPS BPU NPU
- **CPU Architecture:** ARM Cortex-A53
- **CPU Cores:** 4
- **RAM:** 4GB LPDDR4
- **Flash:** microSD (user-supplied)
- **USB:** USB 3.0 + 2x USB 2.0 + Micro-USB (device)
- **Power:** 5V/3A
- **Operating Voltage:** 3.3V
- **Weight:** 110g
- **Antenna:** Built-in PCB antenna
- **SD Card:** microSD

## Connectivity

- **Wifi:** 2.4/5GHz 802.11 b/g/n
- **Bluetooth:** BLE 4.2
- **Ethernet:** Gigabit

## Use Cases

- autonomous-robot
- edge-ai
- computer-vision
- educational-platform
- smart-home

## Components

- **Sunrise-3** (mcu): D-Robotics Sunrise 3 SoC with quad-core ARM Cortex-A53 at 1.5GHz and dual-core Bernoulli Processing Unit delivering 5 TOPS AI inference performance. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fdeveloper.d-robotics.cc%2Fen%2Fdocumentation&ref=openhardware.directory&product=d-robotics-rdk-x3&source=md-export)

## Description

## Overview

The D-Robotics RDK X3 is an AI-focused single board computer designed for robotics and edge computing. It features the Sunrise 3 SoC with a quad-core ARM Cortex-A53 CPU at 1.5GHz paired with a 5 TOPS dual-core Bernoulli Processing Unit (BPU) for hardware-accelerated neural network inference.

With 4GB LPDDR4 RAM, dual MIPI CSI camera inputs, 4K@60fps H.265 video encoding/decoding, and Gigabit Ethernet, the RDK X3 is built for computer vision and robotics applications. The Raspberry Pi 4B-compatible 40-pin GPIO header provides access to I2C, SPI, UART, I2S, and PWM interfaces, along with broad accessory compatibility.

The board runs Ubuntu 20.04/22.04 with native ROS2 support, making it a turnkey platform for building autonomous robots, smart home systems, and AI-powered applications. WiFi and Bluetooth 4.2 connectivity, USB 3.0, and HDMI 1.4 output round out a comprehensive feature set for both development and deployment scenarios.

## Where to Buy

- [DFRobot](https://openhardware.directory/r?to=https%3A%2F%2Fwww.dfrobot.com%2Fproduct-2869.html&ref=openhardware.directory&product=d-robotics-rdk-x3&source=md-export) — $80.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.dfrobot.com%2Fproduct-2869.html&ref=openhardware.directory&product=d-robotics-rdk-x3&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdeveloper.d-robotics.cc%2Fen%2Fdocumentation&ref=openhardware.directory&product=d-robotics-rdk-x3&source=md-export)

## Images

![D-Robotics RDK X3](https://nbg1.your-objectstorage.com/openhardware-directory/entities/d-robotics-rdk-x3/36d79be41f46.png)
![D-Robotics RDK X3](https://nbg1.your-objectstorage.com/openhardware-directory/entities/d-robotics-rdk-x3/e9e8da3234f3.png)
![D-Robotics RDK X3](https://nbg1.your-objectstorage.com/openhardware-directory/entities/d-robotics-rdk-x3/ef71a2c4a2a6.jpg)
![D-Robotics RDK X3](https://nbg1.your-objectstorage.com/openhardware-directory/entities/d-robotics-rdk-x3/a9781d0dbb76.jpg)

---
[View full device page](https://openhardware.directory/devices/d-robotics-rdk-x3)
