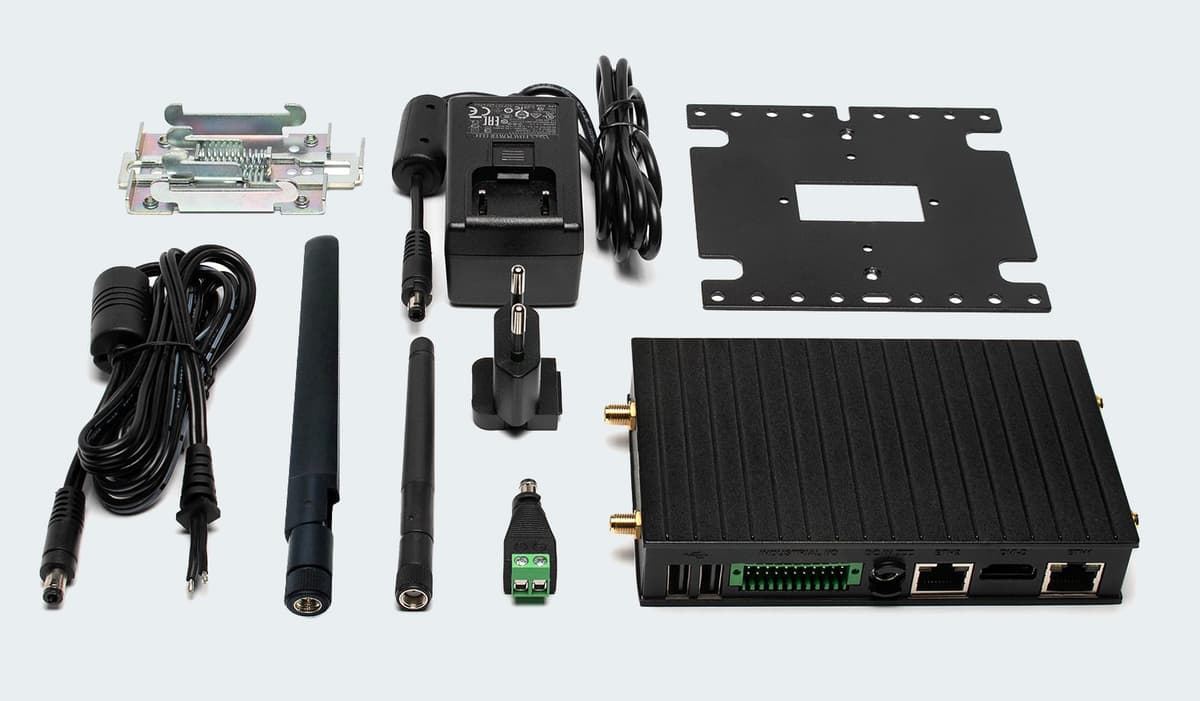

CompuLab IOT-DIN-IMX8PLUS
DIN-rail industrial IoT gateway with NXP i.MX8M Plus quad-core Cortex-A53 at 1.8GHz, up to 8GB RAM, dual LAN, CAN bus, RS485/RS232, optional LTE, stackable I/O modules (up to 12x serial, 32x DI/DO, ADC), and 15-year availability.
$309.00
Tap any value to browse matching devices
Specifications
Certifications
Components
NXP i.MX8M Plus quad-core ARM Cortex-A53 at 1.8GHz with 2 TOPS NPU for edge AI inference.
Bus Interfaces
GPIO Map
Overview
The CompuLab IOT-DIN-IMX8PLUS is a modular DIN-rail mountable IoT edge gateway designed for industrial automation and building management. Built around the NXP i.MX8M Plus quad-core Cortex-A53 at 1.8GHz with up to 8GB RAM and 128GB eMMC, it provides the computing foundation for edge applications in factory, energy, and infrastructure environments.
What makes the IOT-DIN unique is its stackable I/O expansion system. Starting with built-in dual LAN, USB 3.0, TPM 2.0, RS485, RS232, CAN bus, and 2x DI + 2x DO, you can add expansion modules for up to 12x RS485/RS232 serial ports, 32x digital inputs + 32x digital outputs, 8-channel ADC, and WiFi 6 + Bluetooth 5.3. An optional 4G LTE modem provides cellular connectivity.
Running Yocto or Debian with Docker, Azure IoT, Node-RED, Modbus RTU/TCP, MQTT, and Mender OTA support, the gateway bridges field devices to cloud platforms. Available in commercial (0-50°C) and industrial (-30°C to 70°C) temperature ratings with a 5-year warranty and 15-year availability commitment.
Use Cases
3Industrial Automation
Boards designed or suitable for industrial control, automation, and embedded systems in harsh environments.
IoT Gateway
Acting as a local IoT gateway that aggregates data from sensors, runs MQTT broker, Node-RED, or Home Assistant, and bridges to the cloud.
Industrial IoT
Build robust industrial IoT solutions using CAN bus, RS-485, Modbus, and wired Ethernet interfaces.
