# BigTreeTech TFT35-SPI V2.1

> 3.5-inch 480x320 SPI touchscreen display for 3D printers, designed for CB1-based boards. Uses ILI9488 SPI LCD driver and NS2009 I2C touch controller, includes an IO2CAN module option.

## Quick Facts

- **Brand:** BigTreeTech
- **Board Type:** Display
- **Product Readiness:** consumer
- **CPU:** Controlled by host CPU via SPI/I2C
- **CPU Architecture:** No
- **RAM:** N/A (host-controlled)
- **Flash:** N/A (host-controlled)
- **Power:** 5V DC
- **Operating Voltage:** 3.3V
- **Display:** 3.5 inch TFT SPI Touchscreen 480x320

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** Yes

## Compatible Firmware

Klipper

## Use Cases

- 3D Printing

## Components

- **ILI9488** (display-driver): Ilitek ILI9488 SPI LCD display driver for 480x320 TFT screens — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.displayfuture.com%2FDisplay%2Fdatasheet%2Fcontroller%2FILI9488.pdf&ref=openhardware.directory&product=bigtreetech-tft35-spi-v2-1&source=md-export)
- **NS2009** (touch-controller): NS2009 resistive touchscreen controller using I2C interface — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fbigtreetech%2FTFT35-SPI&ref=openhardware.directory&product=bigtreetech-tft35-spi-v2-1&source=md-export)

## Protocols

- **SPI**
- **I2C**

## Description

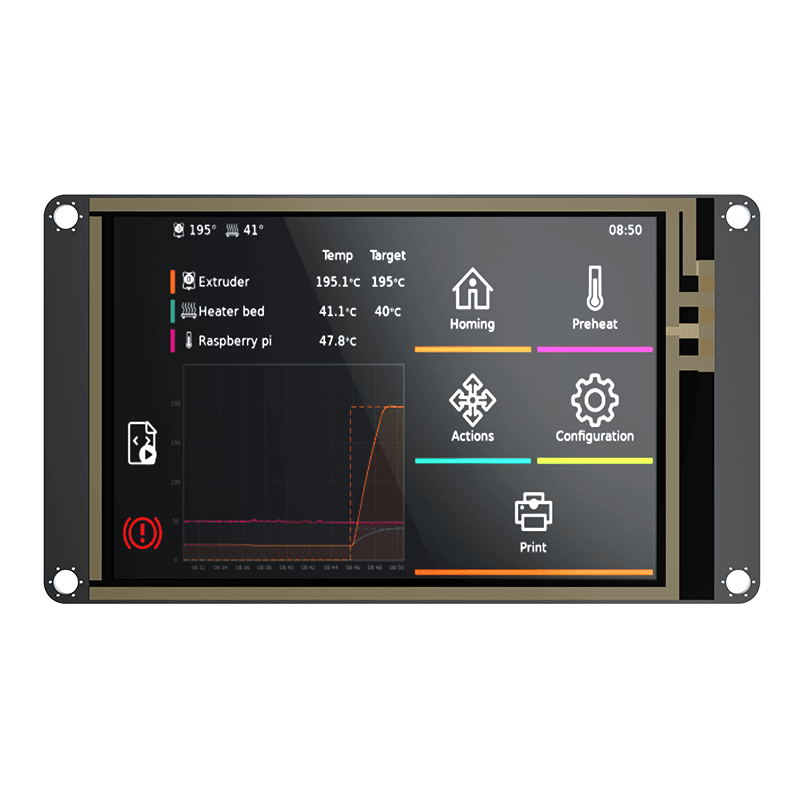

The BigTreeTech TFT35-SPI V2.1 is a compact 3.5-inch touchscreen display measuring 480x320 pixels, designed specifically for use with BIGTREETECH CB1-based 3D printer control boards. Unlike the TFT35 V3.0 which uses a standalone STM32, this display is controlled directly by the host CPU via SPI (ILI9488 driver IC) for the LCD and I2C (NS2009 touch controller) for touch input, reducing cost and complexity.

The display connects via an FPC flat cable and an XH2.54 terminal connector for power and communication. It is compatible with CB1 OS version 2.2.1 and later; setup requires editing the BoardEnv.txt file to enable the appropriate overlays. The board dimensions are 98x56mm with matching 98x56mm mounting footprint. An optional IO2CAN module can be used alongside this display to add CAN bus connectivity to the printer setup.

The TFT35-SPI V2.1 is ideal for BIGTREETECH Manta and similar boards where a cost-effective touchscreen interface is needed without an additional display controller MCU. Open-source hardware design files are available in the GitHub repository.

## Where to Buy

- [BIQU Equipment](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbigtreetech-tft35-spi-v2-1-touchscreen-io2can-module&ref=openhardware.directory&product=bigtreetech-tft35-spi-v2-1&source=md-export)

## Resources

- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fbigtreetech%2FTFT35-SPI&ref=openhardware.directory&product=bigtreetech-tft35-spi-v2-1&source=md-export)
- [product](https://openhardware.directory/r?to=https%3A%2F%2Fbiqu.equipment%2Fproducts%2Fbigtreetech-tft35-spi-v2-1-touchscreen-io2can-module&ref=openhardware.directory&product=bigtreetech-tft35-spi-v2-1&source=md-export)

## Tags

`3d-printing`, `display`, `touchscreen`, `tft35`, `spi`, `cb1`, `klipper`, `bigtreetech`, `3.5-inch`, `io2can`
