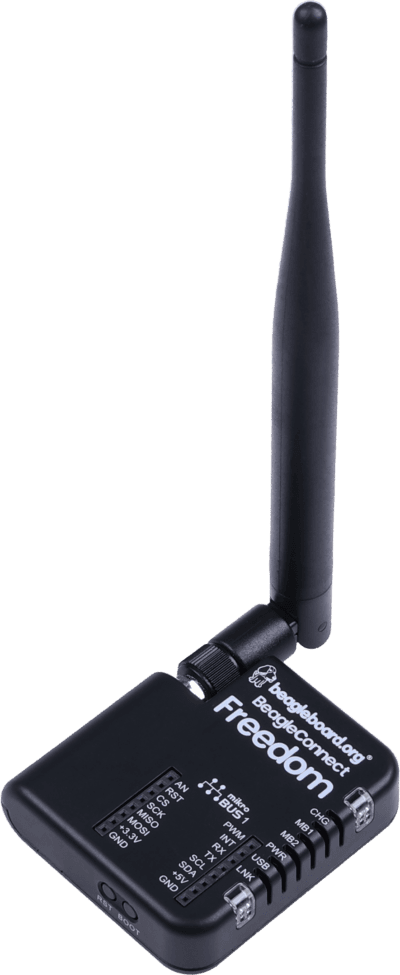

# BeagleConnect Freedom > Open-source wireless IoT board with TI CC1352P7 dual-band radio (sub-GHz + 2.4 GHz), BLE 5.0, two mikroBUS sockets for 1,000+ Click boards, and Zephyr RTOS. Designed for long-range wireless sensor networks up to 1 km. ## Quick Facts - **Brand:** BeagleBoard.org - **Board Type:** CC1352P7 - **Price:** ~$29.67 - **Product Readiness:** developer - **CPU:** ARM Cortex-M4F @ 48MHz, FPU, DSP - **CPU Architecture:** ARM Cortex-M4F - **CPU Cores:** 1 - **RAM:** 144 KB SRAM + 8 KB cache - **Flash:** 704 KB + 2 MB external SPI - **USB:** USB-C (via MSP430 bridge) - **Power:** 5V via USB-C or battery - **Operating Voltage:** 3.3V - **Antenna:** built-in 2.4GHz chip antenna + U.FL for sub-GHz ## Connectivity - **Bluetooth:** Bluetooth 5.0 BLE ## Open Source - **Firmware:** Yes - **Schematics:** Yes - **PCB Layout:** Yes ## Compatible Firmware Zephyr RTOS, micropython ## Use Cases - long-range-wireless-sensors - sub-ghz-iot - industrial-iot - environmental-monitoring - mikrobus-prototyping - beaglebone-expansion - sensor-aggregation ## Components - **TI CC1352P7** (MCU): TI SimpleLink multi-band wireless MCU with ARM Cortex-M4F @ 48MHz, 704KB flash, 144KB SRAM, supporting sub-1 GHz (287-1054 MHz) and 2.4 GHz bands for BLE 5.0, IEEE 802.15.4, Wi-SUN, and Sidewalk — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.ti.com%2Flit%2Fds%2Fsymlink%2Fcc1352p7.pdf&ref=openhardware.directory&product=beagleconnect-freedom&source=md-export) - **TI MSP430F5503** (MCU): TI MSP430 mixed-signal microcontroller with 32KB flash and 4KB RAM, serving as USB-to-UART bridge for serial console and firmware updates — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.ti.com%2Fproduct%2FMSP430F5503&ref=openhardware.directory&product=beagleconnect-freedom&source=md-export) - **TI OPT3001** (Sensor): TI digital ambient light sensor measuring 0.01 to 83,000 lux with human-eye spectral response, I2C interface — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.ti.com%2Flit%2Fds%2Fsymlink%2Fopt3001.pdf&ref=openhardware.directory&product=beagleconnect-freedom&source=md-export) - **TI HDC2010** (Sensor): TI integrated humidity and temperature sensor with ±2% RH accuracy and ±0.2°C accuracy, I2C interface, ultra-low power — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.ti.com%2Fproduct%2FHDC2010&ref=openhardware.directory&product=beagleconnect-freedom&source=md-export) - **2MB SPI Flash** (Storage): 2MB SPI NOR flash memory for firmware storage, OTA updates, and data logging — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.ti.com%2Flit%2Fds%2Fsymlink%2Fcc1352p7.pdf&ref=openhardware.directory&product=beagleconnect-freedom&source=md-export) - **TI BQ2104** (Battery Charger): TI battery charger for powering the board from rechargeable batteries in field deployments — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.ti.com%2Flit%2Fds%2Fsymlink%2Fcc1352p7.pdf&ref=openhardware.directory&product=beagleconnect-freedom&source=md-export) ## Protocols - **UART** (UART0): TX: DIO13, RX: DIO12 - **UART** (UART1): TX: DIO22, RX: DIO21 - **I2C**: SCL: DIO25, SDA: DIO26 - **SPI**: SCK: DIO10, MOSI: DIO9, MISO: DIO11, CS_FLASH: DIO8, CS_MB1: DIO28, CS_MB2: DIO27 - **USB** - **IEEE 802.15.4** - **BLE** - **mikroBUS** ## GPIO Map | Pin | Name | Type | Functions | |-----|------|------|-----------| | DIO5 | Reset mikroBUS 2 | — | — | | DIO6 | Reset mikroBUS 1 | — | — | | DIO7 | Sensor Interrupt | — | — | | DIO8 | SPI Flash CS | SPI | — | | DIO9 | SPI MOSI | SPI | — | | DIO10 | SPI SCK | SPI | — | | DIO11 | SPI MISO | SPI | — | | DIO12 | UART0 RX | UART | — | | DIO13 | UART0 TX | UART | — | | DIO14 | I2C Bus Control | — | — | | DIO15 | User Boot Button | — | digital-input | | DIO16 | mikroBUS 1 Interrupt | — | — | | DIO17 | mikroBUS 1 PWM | — | pwm | | DIO18 | Link LED | — | — | | DIO19 | mikroBUS 2 PWM | — | pwm | | DIO20 | mikroBUS 2 Interrupt | — | — | | DIO21 | UART1 RX | UART | — | | DIO22 | UART1 TX | UART | — | | DIO23 | mikroBUS 1 Analog | — | adc | | DIO24 | mikroBUS 2 Analog | — | adc | | DIO25 | I2C SCL | I2C | — | | DIO26 | I2C SDA | I2C | — | | DIO27 | SPI CS mikroBUS 2 | SPI | — | | DIO28 | SPI CS mikroBUS 1 | SPI | — | ## Description ## Overview The BeagleConnect Freedom is an open-source wireless IoT development board from BeagleBoard.org built around the Texas Instruments CC1352P7 multi-band wireless MCU. It's designed to connect sensors and peripherals to a BeagleBone or Linux host via sub-GHz wireless with up to 1 km range. The dual-band radio covers sub-1 GHz (287–1054 MHz) and 2.4 GHz bands, supporting BLE 5.0, IEEE 802.15.4, Wi-SUN, and Amazon Sidewalk protocols. Two mikroBUS sockets provide instant compatibility with over 1,000 MikroElektronika Click sensor boards — snap on a sensor board and start collecting data wirelessly. The board includes onboard TI OPT3001 light sensor and HDC2010 humidity/temperature sensor, a TI MSP430F5503 co-processor for USB-UART bridging, 2 MB external SPI flash, battery charger, and a plastic enclosure with attached sub-GHz antenna. It runs Zephyr RTOS and integrates with Linux via the Greybus protocol for seamless BeagleBone expansion. ## Where to Buy - [Electromaker](https://openhardware.directory/r?to=https%3A%2F%2Felectromaker.io%2Fshop%2Fproduct%2Fbeagleconnect-freedom&ref=openhardware.directory&product=beagleconnect-freedom&source=md-export) — $29.67 - [Mouser](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mouser.com%2FProductDetail%2F102110577&ref=openhardware.directory&product=beagleconnect-freedom&source=md-export) — $29.67 - [DigiKey](https://openhardware.directory/r?to=https%3A%2F%2Fwww.digikey.com%2Fen%2Fproducts%2Fdetail%2F102110577&ref=openhardware.directory&product=beagleconnect-freedom&source=md-export) — $29.67 - [Farnell](https://openhardware.directory/r?to=https%3A%2F%2Fwww.farnell.com%2F&ref=openhardware.directory&product=beagleconnect-freedom&source=md-export) — $29.67 ## Resources - [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.beagleboard.org%2Fboards%2Fbeagleconnect-freedom&ref=openhardware.directory&product=beagleconnect-freedom&source=md-export) - [github](https://openhardware.directory/r?to=https%3A%2F%2Fgit.beagleboard.org%2Fbeagleconnect%2Ffreedom&ref=openhardware.directory&product=beagleconnect-freedom&source=md-export) - [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.beagleboard.org%2Fboards%2Fbeagleconnect%2Ffreedom%2Findex.html&ref=openhardware.directory&product=beagleconnect-freedom&source=md-export) - [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.ti.com%2Flit%2Fds%2Fsymlink%2Fcc1352p7.pdf&ref=openhardware.directory&product=beagleconnect-freedom&source=md-export) ## Tags `beagleboard`, `cc1352`, `sub-ghz`, `iot`, `wireless`, `zephyr`, `mikrobus`, `sensor-network`, `open-hardware`, `ti` ## Images ![BeagleConnect Freedom](https://nbg1.your-objectstorage.com/openhardware-directory/entities/beagleconnect-freedom/ff9c521adb2e.png) ![BeagleConnect Freedom](https://nbg1.your-objectstorage.com/openhardware-directory/entities/beagleconnect-freedom/dde445480090.png) ![BeagleConnect Freedom](https://nbg1.your-objectstorage.com/openhardware-directory/entities/beagleconnect-freedom/1770a9b69639.png) ![BeagleConnect Freedom](https://nbg1.your-objectstorage.com/openhardware-directory/entities/beagleconnect-freedom/f41d77e61537.png) ![BeagleConnect Freedom](https://nbg1.your-objectstorage.com/openhardware-directory/entities/beagleconnect-freedom/351e7ac68e0e.webp) ![BeagleConnect Freedom](https://nbg1.your-objectstorage.com/openhardware-directory/entities/beagleconnect-freedom/2da6c0f649a8.png) > **Battery Powered:** Rechargeable (BQ2104 charger) --- [View full device page](https://openhardware.directory/devices/beagleconnect-freedom)
