# TI SK-AM62-SIP Starter Kit

> Texas Instruments AM62x Sitara SiP ultra-compact evaluation board with 512MB LPDDR4 integrated in-package, microSD, 100Mbps Ethernet, USB-C, and 5V power — the smallest AM62 evaluation platform for space-constrained IoT designs.

## Quick Facts

- **Brand:** Texas Instruments
- **Board Type:** linux-sbc
- **Price:** ~$199
- **Product Readiness:** developer
- **CPU:** ti-am62x
- **CPU Architecture:** ARM Cortex-A53 64-bit
- **RAM:** 512MB LPDDR4 (in-package SiP)
- **Flash:** microSD boot
- **USB:** USB-C
- **Power:** 5V
- **Operating Voltage:** 3.3V
- **SD Card:** microSD

## Connectivity

- **Ethernet:** 100Mbps

## Compatible Firmware

armbian

## Use Cases

- iot
- embedded-linux
- industrial-automation

## Description

## Overview

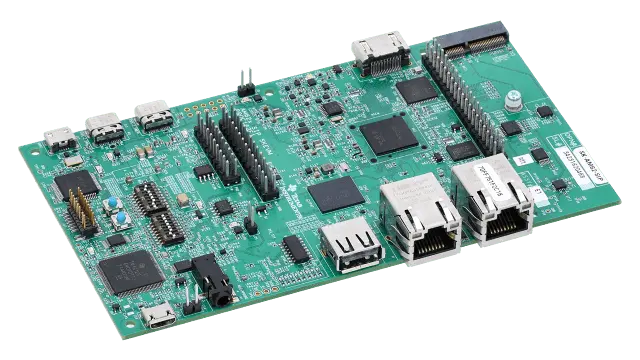

The TI SK-AM62-SIP is a Starter Kit based on the AM62x Sitara System-in-Package (SiP), where the AM62x processor and 512MB LPDDR4 memory are integrated into a single compact package. This SiP approach reduces BOM complexity and PCB area dramatically, enabling ultra-small product designs without sacrificing the full capabilities of the AM62x quad-core Cortex-A53 + Cortex-M4F platform.

The evaluation board provides a microSD boot slot, 100Mbps Ethernet, USB-C, and a 5V USB-C power input. The integrated 512MB LPDDR4 is sufficient for headless IoT and industrial gateway applications, and the board supports dual-display output via HDMI (DPI) and LVDS at up to 2K/60fps. The AM62x SiP also includes high-security field-securable silicon options for applications requiring hardware root-of-trust.

Armbian supports the SK-AM62-SIP, providing current Linux kernel images for evaluation. This board is ideal for engineers designing ultra-compact industrial IoT nodes and HMI panels who need to evaluate the AM62x SiP before committing to a custom PCB design.

## Where to Buy

- [TI Store](https://openhardware.directory/r?to=https%3A%2F%2Fwww.ti.com%2Fproduct%2FSK-AM62-SIP%2Fpart-details%2FSK-AM62-SIP&ref=openhardware.directory&product=ti-sk-am62-sip&source=md-export) — $199.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.armbian.com%2Fti-sk-am62-sip%2F&ref=openhardware.directory&product=ti-sk-am62-sip&source=md-export)
