# LILYGO Module17 Revision 0.1E

> STM32-based M17 digital amateur radio modem board with DE-9 connector — implements the open-source M17 protocol for digital voice and data over amateur radio, compatible with OpenRTX firmware.

## Quick Facts

- **Brand:** LILYGO
- **Board Type:** dev-board
- **Price:** ~$32.36
- **Product Readiness:** developer
- **CPU:** STM32
- **CPU Architecture:** ARM Cortex-M
- **CPU Cores:** 1
- **RAM:** 20KB SRAM
- **Flash:** 128KB
- **USB:** USB (CH9102 driver)
- **Power:** 5V
- **Operating Voltage:** 3.3V

## Open Source

- **Firmware:** Yes
- **Schematics:** No
- **PCB Layout:** No

## Compatible Firmware

arduino

## Use Cases

- two-way-radio
- off-grid-communication

## Components

- **STM32** (mcu): STMicroelectronics STM32 ARM Cortex-M microcontroller implementing the M17 digital radio modem protocol. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.st.com%2Fen%2Fmicrocontrollers-microprocessors%2Fstm32-32-bit-arm-cortex-mcus.html&ref=openhardware.directory&product=lilygo-module17-rev-0-1e&source=md-export)
- **DE-9 Connector** (interface): DE-9 (DB9) serial connector for interfacing with amateur radio transceivers at configurable baud rate. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Flilygo.cc%2Fproducts%2Fmodule17-revision-0-1e&ref=openhardware.directory&product=lilygo-module17-rev-0-1e&source=md-export)
- **CH9102** (interface): CH9102 USB to serial bridge chip for programming and PC communication. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.wch-ic.com%2Fproducts%2FCH9102.html&ref=openhardware.directory&product=lilygo-module17-rev-0-1e&source=md-export)

## Protocols

- **UART**
- **USB**

## Description

## Overview

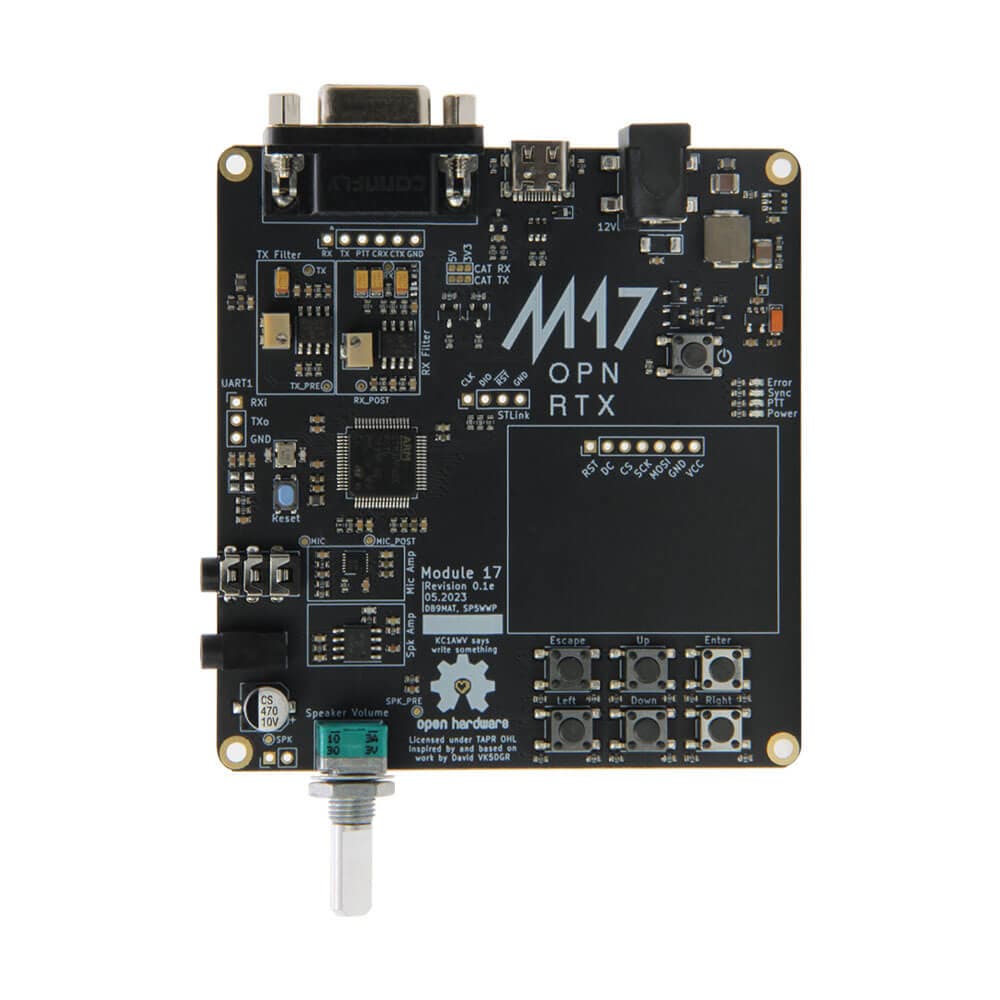

The LILYGO Module17 Revision 0.1E is an open-source STM32-based modem board implementing the M17 digital amateur radio protocol. M17 is a modern open-source digital radio protocol designed as a free alternative to proprietary systems like DMR and D-STAR, supporting digital voice (Codec2 vocoder) and data transmission over VHF/UHF frequencies. The module connects to compatible radio transceivers via a DE-9 serial connector and is compatible with the OpenRTX open-source radio firmware. It also works with Droid Star software for linking to digital radio networks. Available in two variants: soldered with an optional display screen, or non-soldered without screen for DIY integration. The configurable serial interface allows flexible integration with different radio platforms including the FTM-6000.
