# JetHub D1 / D1+

> DIN-rail mountable Linux IoT hub by JetHome, powered by the Amlogic S905W2 SoC with up to 4GB DDR4, 16GB eMMC, WiFi 5, Bluetooth 5.0, Gigabit Ethernet, and 12V DC — designed for home automation and industrial IoT.

## Quick Facts

- **Brand:** JetHome
- **Board Type:** linux-sbc
- **Price:** ~$95
- **Product Readiness:** consumer
- **CPU:** Quad-core Cortex-A35 @ 2GHz (Amlogic S905W2)
- **CPU Architecture:** ARM Cortex-A35
- **CPU Cores:** 4
- **RAM:** 2GB or 4GB DDR4
- **Flash:** 16GB eMMC
- **USB:** USB 2.0 + USB-C
- **Power:** 12V DC
- **Operating Voltage:** 3.3V
- **Antenna:** Built-in PCB antenna
- **SD Card:** microSD

## Connectivity

- **Wifi:** 802.11ac (WiFi 5)
- **Bluetooth:** BLE 5.0
- **Ethernet:** Gigabit

## Open Source

- **Status:** partially-open
- **Firmware:** No
- **Schematics:** Yes
- **PCB Layout:** No

## Compatible Firmware

armbian

## Use Cases

- home-automation
- iot-gateway
- din-rail
- industrial-controller

## Components

- **Amlogic-S905W2** (soc): Amlogic S905W2 quad-core Cortex-A35 @ 2GHz SoC with Mali-G31 GPU and neural network engine for media and IoT applications. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.amlogic.com%2F%23Products%2F393%2Findex.html&ref=openhardware.directory&product=jethub-d1&source=md-export)

## Description

## Overview

The JetHub D1 (and its upgraded D1+ variant) are DIN-rail mountable Linux IoT hub boards from JetHome, designed for installation in standard electrical panels and industrial cabinets. Built on the Amlogic S905W2 quad-core Cortex-A35 SoC, they provide a compact, fanless Linux computing platform for home automation controllers, smart building gateways, and industrial IoT edge nodes that require a physically secure and standardized mounting solution.

The board is equipped with up to 4GB of DDR4 RAM and 16GB of eMMC for the operating system, alongside WiFi 5 (802.11ac), Bluetooth 5.0, and Gigabit Ethernet for comprehensive connectivity options. A microSD slot provides additional storage expansion. The USB-C and USB 2.0 ports allow connection of Zigbee coordinators, Z-Wave sticks, and other USB IoT peripherals, making the JetHub D1 a natural host for platforms like Home Assistant, OpenWrt, or custom Python/Node.js IoT applications.

Powered by a 12V DC supply compatible with standard DIN-rail power modules, the JetHub D1 integrates cleanly into home automation cabinets alongside circuit breakers and smart meters. Armbian provides a solid Linux base for running container-based workloads, and JetHome maintains official system images with hardware support for the onboard peripherals.

## Where to Buy

- [AliExpress](https://openhardware.directory/r?to=https%3A%2F%2Fwww.aliexpress.com%2Fitem%2F1005010431713721.html&ref=openhardware.directory&product=jethub-d1&source=md-export) — $95.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fjethome.ru%2Fjethub-d1%2F&ref=openhardware.directory&product=jethub-d1&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwww.armbian.com%2Fjethub-d1%2F&ref=openhardware.directory&product=jethub-d1&source=md-export)

## Tags

`home-automation`, `iot-gateway`, `din-rail`, `amlogic`, `wifi`, `embedded-linux`, `industrial`

## Images

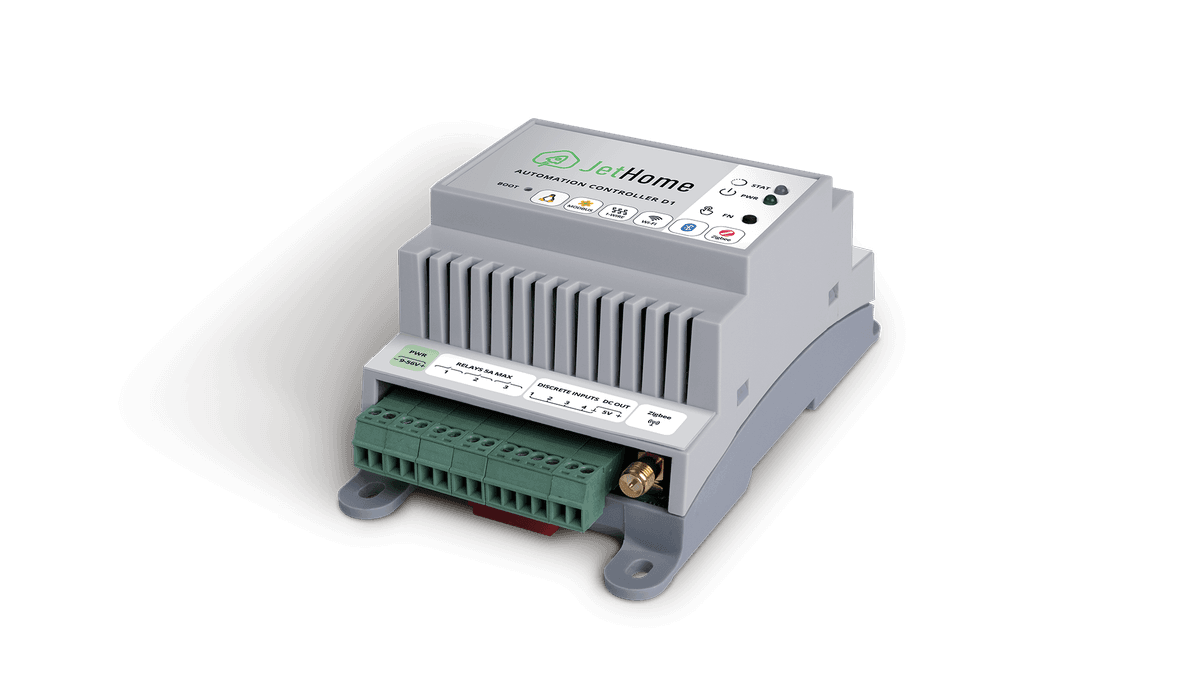

![JetHub D1 / D1+](https://nbg1.your-objectstorage.com/openhardware-directory/entities/jethub-d1/2a6cfcb56a05.png)

---
