# Banana Pi M2S

> Banana Pi M2S is a hexa-core SBC powered by the Amlogic S922X SoC with 4GB DDR4, 16GB eMMC, WiFi 5, Bluetooth 5.0, four USB 3.0 ports, and Gigabit Ethernet.

## Quick Facts

- **Brand:** Banana Pi
- **Board Type:** linux-sbc
- **Price:** ~$96
- **Product Readiness:** consumer
- **CPU:** Amlogic S922X
- **CPU Architecture:** ARM Cortex-A73/A53
- **CPU Cores:** hexa-core
- **RAM:** 4GB DDR4
- **Flash:** 16GB eMMC
- **USB:** 4x USB 3.0 + USB-C 3.0
- **Power:** 12V DC barrel jack
- **Operating Voltage:** 12V
- **Antenna:** Built-in PCB antenna
- **SD Card:** microSD

## Connectivity

- **Wifi:** WiFi 5 (802.11ac)
- **Bluetooth:** BT 5.0
- **Ethernet:** Gigabit Ethernet (10/100/1000M)

## Open Source

- **Firmware:** No
- **Schematics:** No
- **PCB Layout:** No

## Compatible Firmware

armbian

## Use Cases

- media-server
- home-assistant-host
- openmediavault-nas
- self-hosted-linux-server

## Components

- **Amlogic S922X** (soc): Amlogic S922X hexa-core SoC with four Cortex-A73 cores at 1.8GHz and two Cortex-A53 cores at 1.9GHz, Mali-G52 GPU. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.amlogic.com%2F%23Products%2F395%2Findex.html&ref=openhardware.directory&product=bananapi-m2s&source=md-export)

## Description

## Overview

The Banana Pi M2S is a mid-range single-board computer from SinoVoip built around the Amlogic S922X hexa-core SoC — four Cortex-A73 cores at 1.8 GHz plus two Cortex-A53 cores at 1.9 GHz. It ships with 4GB of DDR4 RAM and 16GB eMMC storage, and adds a microSD card slot for flexible OS and data storage. The S922X is widely regarded as a solid media and NAS platform with well-established community kernel support.

Wireless connectivity is built-in via a dual-band 802.11ac (WiFi 5) and Bluetooth 5.0 combo module. Wired networking is provided by a native Gigabit Ethernet port. The board offers four USB 3.0 Type-A ports plus a USB 3.0 Type-C port, making it excellent for external storage arrays. HDMI 2.1 output supports 4K display output, and the 40-pin GPIO header provides standard embedded interfaces.

The M2S is powered by a 12V DC barrel jack. Armbian offers standard support images including desktop, minimal/IOT, Home Assistant, and OpenMediaVault variants, making it a well-supported choice for self-hosted server and media player builds.

## Where to Buy

- [Banana Pi](https://openhardware.directory/r?to=https%3A%2F%2Fwww.banana-pi.org%2Fen%2Fbanana-pi-sbcs%2F97.html&ref=openhardware.directory&product=bananapi-m2s&source=md-export) — $96.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.armbian.com%2Fbananapi-m2s%2F&ref=openhardware.directory&product=bananapi-m2s&source=md-export)
- [vendor](https://openhardware.directory/r?to=https%3A%2F%2Fwww.banana-pi.org%2Fen%2Fbanana-pi-sbcs%2F97.html&ref=openhardware.directory&product=bananapi-m2s&source=md-export)

## Tags

`banana-pi`, `amlogic`, `s922x`, `sbc`, `linux`, `armbian`, `wifi5`, `bluetooth`, `usb3`, `gigabit-ethernet`, `single-board-computer`

## Images

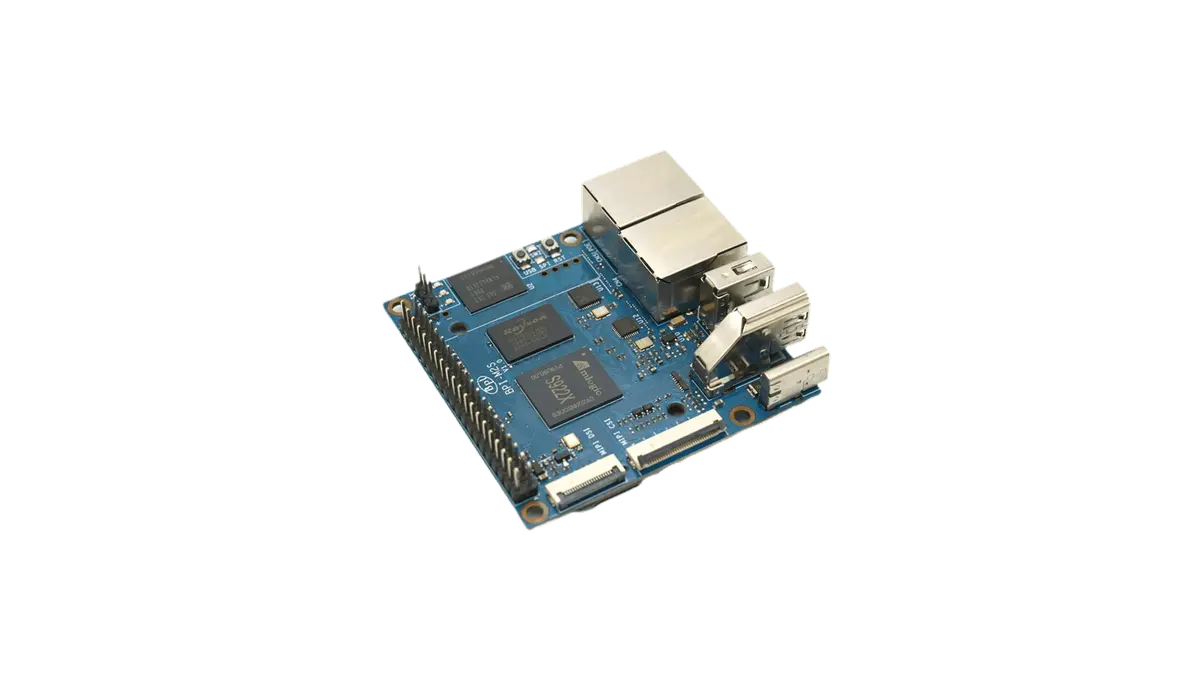

![Banana Pi M2S](https://nbg1.your-objectstorage.com/openhardware-directory/entities/bananapi-m2s/9fa6c862d369.png)
