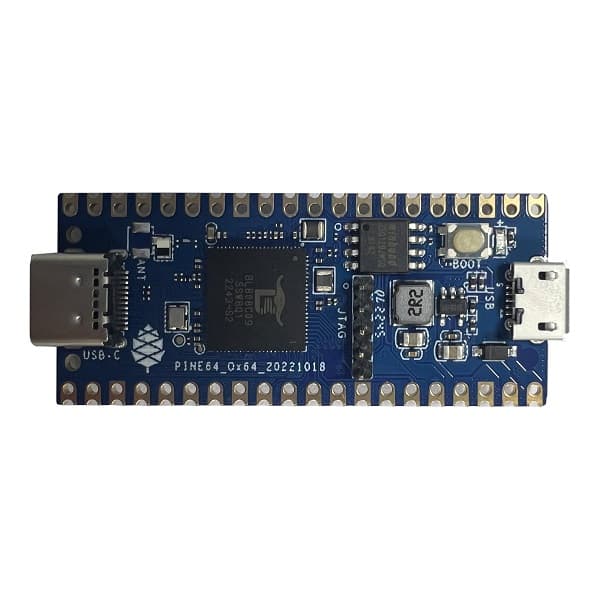

# Pine64 Ox64 > Pico-sized RISC-V SBC powered by the Bouffalo Lab BL808 triple-core SoC with WiFi, BLE 5.0, and Zigbee. Features 64MB PSRAM, up to 16MB flash, microSD slot, USB-C with MIPI-CSI camera support, and 26 GPIO pins. Runs Linux, NuttX, and FreeRTOS. Priced from $6. ## Quick Facts - **Brand:** Pine64 - **Board Type:** sbc - **Price:** ~$6 - **Product Readiness:** developer - **CPU:** Bouffalo Lab BL808 - **CPU Architecture:** RISC-V 64-bit - **CPU Cores:** 3 - **RAM:** 64 MB PSRAM - **Flash:** 16 MB,128 MB - **USB:** USB-C (USB 2.0 OTG) - **Power:** 5V via microUSB or USB-C - **Operating Voltage:** 3.3 V - **Dimensions:** 51 mm × 21 mm - **Antenna:** built-in chip antenna - **SD Card:** microSD ## Connectivity - **Wifi:** 802.11 b/g/n - **Bluetooth:** BLE 5.0 - **Zigbee:** IEEE 802.15.4 ## Open Source - **Status:** fully-open - **Firmware:** Yes - **Schematics:** Yes - **PCB Layout:** Yes - **License:** Apache-2.0 ## Compatible Firmware linux, nuttx, freertos, arduino ## Use Cases - iot - iot-gateway - security-camera - environmental-monitoring ## Components - **BL808** (MCU): Triple-core RISC-V SoC: C906 64-bit @480MHz + E907 32-bit @320MHz + E902 @150MHz with WiFi/BLE/Zigbee and BLAI-100 NPU — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fraw.githubusercontent.com%2Fbouffalolab%2Fbl_docs%2Fmain%2FBL808_DS%2Fen%2FBL808_DS_1.2_en.pdf&ref=openhardware.directory&product=pine64-ox64&source=md-export) - **GD25LQ16E** (flash): 16 Mbit XSPI NOR Flash (16MB variant) — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.pine64.org%2Fdoc%2Fdatasheet%2Fox64%2Fgd25lq16e_rev1.2_20210108.pdf&ref=openhardware.directory&product=pine64-ox64&source=md-export) - **Chip Antenna** (antenna): 2.4GHz on-board chip antenna with u.FL footprint — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.pine64.org%2Fdoc%2Fox64%2FPINE64_Ox64-Schematic-202221018.pdf&ref=openhardware.directory&product=pine64-ox64&source=md-export) ## Protocols - **UART0**: TX: GPIO14, RX: GPIO15 - **UART3**: TX: GPIO16, RX: GPIO17 - **SPI0**: MISO: GPIO14, MOSI: GPIO13, SCLK: GPIO15, SS: GPIO12 - **JTAG**: TMS: GPIO6, TDO: GPIO7, TCLK: GPIO12, TDI: GPIO13 ## GPIO Map | Pin | Name | Type | Functions | |-----|------|------|-----------| | GPIO6 | ADC CH4 / JTAG TMS | — | digital-input, digital-output, adc, jtag | | GPIO7 | JTAG TDO | — | digital-input, digital-output, jtag | | GPIO11 | ADC CH3 | — | digital-input, digital-output, adc | | GPIO12 | ADC CH6 / SPI SS / JTAG TCLK | — | digital-input, digital-output, adc, spi, jtag | | GPIO13 | ADC CH7 / SPI MOSI / JTAG TDI | — | digital-input, digital-output, adc, spi, jtag | | GPIO14 | UART0 TX / SPI MISO | — | digital-input, digital-output, uart, spi | | GPIO15 | UART0 RX / SPI SCLK | — | digital-input, digital-output, uart, spi | | GPIO16 | UART3 TX (Linux console) | — | digital-input, digital-output, uart | | GPIO17 | UART3 RX (Linux console) | — | digital-input, digital-output, uart | | GPIO18 | ADC CH9 | — | digital-input, digital-output, adc | ## Available Software - **[OpenBouffalo Buildroot](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fopenbouffalo%2Fbuildroot_bouffalo&ref=openhardware.directory&product=pine64-ox64&source=md-export)** (OS): Community Linux distribution for BL808-based boards - **[Bouffalo SDK](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fbouffalolab%2Fbouffalo_sdk&ref=openhardware.directory&product=pine64-ox64&source=md-export)** (SDK): Official SDK for BL808 bare-metal and FreeRTOS development - **[Apache NuttX (Ox64)](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Flupyuen%2Fnuttx-ox64&ref=openhardware.directory&product=pine64-ox64&source=md-export)** (RTOS): NuttX RTOS port for the Ox64 board ## Description ## Overview The Pine64 Ox64 is an ultra-compact RISC-V single board computer in the Raspberry Pi Pico form factor, built around the Bouffalo Lab BL808 triple-core SoC. At just 51mm x 21mm, it packs three RISC-V cores — a 64-bit T-Head C906 at 480MHz for running Linux, a 32-bit T-Head E907 at 320MHz for real-time tasks, and a low-power T-Head E902 at 150MHz — along with 64MB of embedded PSRAM and triple-protocol wireless connectivity (WiFi 802.11 b/g/n, BLE 5.0, and Zigbee). The board comes in two flash variants: a 16MB version suitable for RTOS-only applications and a 128MB version with microSD slot capable of running Linux via the community-maintained OpenBouffalo Buildroot distribution. The USB-C port doubles as a MIPI-CSI camera interface, enabling computer vision projects powered by the BL808's built-in BLAI-100 NPU with H.264 encoding capability. The Ox64 is the most affordable Linux-capable RISC-V SBC available, offering a unique combination of triple-protocol wireless, AI inference hardware, and camera support in a breadboard-friendly package. The active community around OpenBouffalo and Apache NuttX continues to improve software support, making it an excellent platform for RISC-V Linux experimentation and IoT gateway applications. ## Where to Buy - [Pine64 Store (16MB)](https://openhardware.directory/r?to=https%3A%2F%2Fpine64.com%2Fproduct%2F16mb-ox64-sbc-available-on-december-2-2022%2F&ref=openhardware.directory&product=pine64-ox64&source=md-export) — $6.00 - [Pine64 Store (128MB)](https://openhardware.directory/r?to=https%3A%2F%2Fpine64.com%2Fproduct%2F128mb-ox64-sbc-available-on-december-2-2022%2F&ref=openhardware.directory&product=pine64-ox64&source=md-export) — $8.00 ## Resources - [product](https://openhardware.directory/r?to=https%3A%2F%2Fpine64.com%2Fproduct%2F128mb-ox64-sbc-available-on-december-2-2022%2F&ref=openhardware.directory&product=pine64-ox64&source=md-export) - [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fopenbouffalo%2Fbuildroot_bouffalo&ref=openhardware.directory&product=pine64-ox64&source=md-export) - [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.pine64.org%2Fwiki%2FOx64&ref=openhardware.directory&product=pine64-ox64&source=md-export) - [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fraw.githubusercontent.com%2Fbouffalolab%2Fbl_docs%2Fmain%2FBL808_DS%2Fen%2FBL808_DS_1.2_en.pdf&ref=openhardware.directory&product=pine64-ox64&source=md-export) - [schematics](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.pine64.org%2Fdoc%2Fox64%2FPINE64_Ox64-Schematic-202221018.pdf&ref=openhardware.directory&product=pine64-ox64&source=md-export) ## Tags `risc-v`, `wifi`, `ble`, `zigbee`, `linux`, `bl808`, `pine64`, `sbc` ## Images ![Pine64 Ox64](https://nbg1.your-objectstorage.com/openhardware-directory/entities/pine64-ox64/edccd26a085c.jpg) ![Pine64 Ox64](https://nbg1.your-objectstorage.com/openhardware-directory/entities/pine64-ox64/a366ed0f6f40.jpg) --- [View full device page](https://openhardware.directory/devices/pine64-ox64)
