# Pine64 Oz64

> RISC-V and ARM dual-ISA single board computer powered by the Sophgo SG2000 SoC with 512MB DDR3, WiFi 6, BLE 5.2, 10/100 Ethernet, dual MIPI-CSI camera ports, and 0.5 TOPS NPU. Hardware switch selects between RISC-V and ARM boot. Priced from $12.99.

## Quick Facts

- **Brand:** Pine64
- **Board Type:** sbc
- **Price:** ~$12.99
- **Product Readiness:** developer
- **CPU:** Sophgo SG2000
- **CPU Architecture:** RISC-V 64-bit
- **CPU Cores:** 4
- **RAM:** 512 MB DDR3
- **Flash:** none (microSD,eMMC boot)
- **USB:** USB 2.0 Type-A host
- **Power:** 5V/2A via DC barrel jack
- **Operating Voltage:** 5 V
- **Dimensions:** 85 mm × 56 mm
- **Weight:** 10 g
- **Antenna:** built-in
- **SD Card:** microSD

## Connectivity

- **Wifi:** Wi-Fi 6
- **Bluetooth:** BLE 5.2
- **Ethernet:** 10/100 Mbps

## Open Source

- **Status:** fully-open
- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** Yes
- **License:** Apache-2.0

## Compatible Firmware

linux, nuttx, freertos

## Use Cases

- iot
- iot-gateway
- security-camera
- environmental-monitoring

## Components

- **SG2000** (MCU): Quad-core RISC-V+ARM SoC with 512MB DDR3 SiP, 0.5 TOPS NPU, dual MIPI-CSI — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fsophgo%2Fsophgo-doc%2Freleases%2Fdownload%2Fsg2000-trm-v1.0%2Fsg2000_trm_en.pdf&ref=openhardware.directory&product=pine64-oz64&source=md-export)
- **AIC8800DC** (wifi-module): 2.4GHz WiFi 6 + BLE 5.2 wireless module — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.pine64.org%2Fdoc%2Fdatasheet%2Foz64%2FAIC8800DC%2520Datasheet%2520v1.0.pdf&ref=openhardware.directory&product=pine64-oz64&source=md-export)
- **ATECC608A** (secure-element): Hardware crypto and key storage secure element — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.pine64.org%2Fdoc%2Foz64%2FPINE64_Oz64_Schematic-20240517.pdf&ref=openhardware.directory&product=pine64-oz64&source=md-export)
- **Built-in Microphone** (microphone): Onboard MEMS microphone — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.pine64.org%2Fdoc%2Foz64%2FPINE64_Oz64_Schematic-20240517.pdf&ref=openhardware.directory&product=pine64-oz64&source=md-export)

## Protocols

- **UART**: TX: Header, RX: Header
- **I2C**: SDA: Header, SCL: Header
- **SPI**: MOSI: Header, MISO: Header, SCLK: Header, CS: Header

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO0 | 26-pin header | — | digital-input, digital-output, uart, i2c, spi, pwm |

## Available Software

- **[Debian SG200x](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FFishwaldo%2Fsophgo-sg200x-debian&ref=openhardware.directory&product=pine64-oz64&source=md-export)** (OS): Community Debian Linux port for SG2000-based boards
- **[Apache NuttX (SG2000)](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Flupyuen%2Fnuttx-sg2000&ref=openhardware.directory&product=pine64-oz64&source=md-export)** (RTOS): NuttX RTOS port for the SG2000
- **[Sophgo NPU SDK](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fsophgo%2Ftdl_models&ref=openhardware.directory&product=pine64-oz64&source=md-export)** (SDK): Neural network inference SDK for the SG2000 NPU

## Description

## Overview

The Pine64 Oz64 is a compact single board computer that uniquely offers both RISC-V and ARM Cortex-A53 execution via a hardware switch on the Sophgo SG2000 SoC. The board features a 1GHz T-Head C906 RISC-V 64-bit main core, a 700MHz C906 co-processor core, an ARM Cortex-A53 at 1GHz (hardware-selectable), and an 8051 low-power MCU at up to 300MHz — all backed by 512MB of DDR3 memory integrated directly into the SoC package.

Connectivity is a standout feature with WiFi 6 (802.11ax) and BLE 5.2 via the AIC8800DC module, plus onboard 10/100 Mbps Ethernet with optional PoE support. The board includes dual MIPI-CSI camera connectors, MIPI-DSI display output, a 3.5mm audio jack with built-in microphone, microSD and eMMC storage options, and an ATECC608A hardware security element — all in an 85mm x 56mm form factor.

The Oz64 runs Debian Linux on RISC-V with growing support from the Sophgo ecosystem. The 0.5 TOPS INT8 NPU enables edge AI inference, and the dual camera ports make it particularly suited for computer vision and security applications. Apache NuttX RTOS support is also available for real-time embedded use cases, and the unique ARM/RISC-V hardware switch makes it an excellent platform for cross-ISA development and benchmarking.

## Where to Buy

- [Pine64 Store](https://openhardware.directory/r?to=https%3A%2F%2Fpine64.com%2Fproduct%2Foz64-sbc%2F&ref=openhardware.directory&product=pine64-oz64&source=md-export) — $12.99
- [ameriDroid](https://openhardware.directory/r?to=https%3A%2F%2Fameridroid.com%2Fproducts%2Foz64&ref=openhardware.directory&product=pine64-oz64&source=md-export) — $19.95

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fpine64.com%2Fproduct%2Foz64-sbc%2F&ref=openhardware.directory&product=pine64-oz64&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FFishwaldo%2Fsophgo-sg200x-debian&ref=openhardware.directory&product=pine64-oz64&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.pine64.org%2Fwiki%2FOz64&ref=openhardware.directory&product=pine64-oz64&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Fsophgo%2Fsophgo-doc%2Freleases%2Fdownload%2Fsg2000-trm-v1.0%2Fsg2000_trm_en.pdf&ref=openhardware.directory&product=pine64-oz64&source=md-export)
- [schematics](https://openhardware.directory/r?to=https%3A%2F%2Ffiles.pine64.org%2Fdoc%2Foz64%2FPINE64_Oz64_Schematic-20240517.pdf&ref=openhardware.directory&product=pine64-oz64&source=md-export)

## Tags

`risc-v`, `arm`, `wifi-6`, `ble`, `linux`, `sg2000`, `pine64`, `sbc`, `npu`

## Images

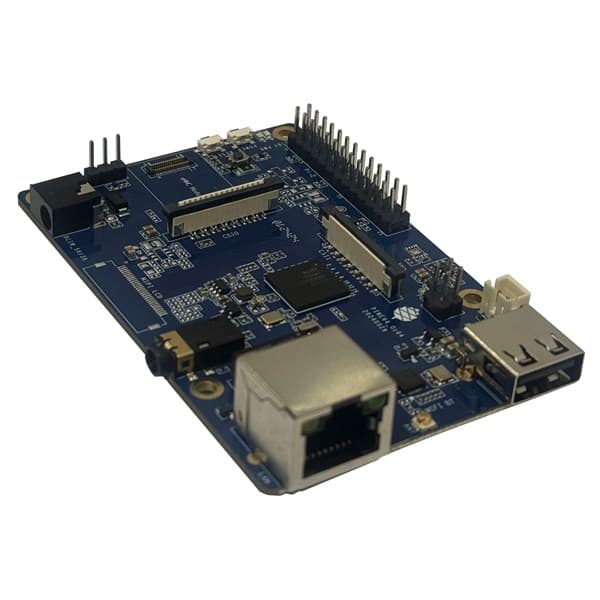

![Pine64 Oz64](https://nbg1.your-objectstorage.com/openhardware-directory/entities/pine64-oz64/4c2a5bf1ebd4.jpg)
