# NanoPC-T6 Plus

> FriendlyElec's flagship RK3588 SBC with 4x Cortex-A76 + 4x Cortex-A53 at 2.4GHz, up to 32GB LPDDR5, NVMe M.2, dual 2.5GbE, dual HDMI out + HDMI in, 6 TOPS NPU, 8K video, 40-pin GPIO, and USB-C PD power.

## Quick Facts

- **Brand:** FriendlyElec
- **Board Type:** sbc
- **Price:** ~$245
- **Product Readiness:** consumer
- **CPU:** ARM Cortex-A76 4x2.4GHz,Cortex-A53 4x1.8GHz, RK3588
- **CPU Architecture:** ARM Cortex-A76
- **CPU Cores:** 8
- **RAM:** 8GB/16GB/32GB LPDDR5
- **Flash:** 32GB/64GB/256GB eMMC
- **USB:** USB-C,USB 3.0,2x USB 2.0
- **Power:** 12V DC via barrel jack or USB-C PD
- **Operating Voltage:** 3.3V
- **Operating Temp:** 0°C to 70°C
- **Dimensions:** 110 × 82.5mm
- **Weight:** 95g
- **Antenna:** M.2 E-Key for WiFi module
- **SD Card:** microSD (SDR104)

## Connectivity

- **Ethernet:** 2x 2.5 Gigabit

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** No

## Compatible Firmware

arduino

## Use Cases

- iot-gateway
- digital-signage
- retro-gaming
- industrial-iot

## Components

- **RK3588** (mcu): Rockchip RK3588 with 4x Cortex-A76 at 2.4GHz + 4x Cortex-A53 at 1.8GHz, Mali-G610 MP4 GPU, 6 TOPS NPU, and 8K video codec. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.rock-chips.com%2Fuploads%2Fpdf%2F2022.8.26%2F192%2FRK3588%2520Brief%2520Datasheet.pdf&ref=openhardware.directory&product=nanopc-t6-plus&source=md-export)

## Protocols

- **SPI**: notes: 2x SPI via 40-pin GPIO header
- **I2C**: notes: 1x I2C via 40-pin GPIO header
- **UART**: notes: 6x UART via 40-pin GPIO header + debug UART
- **PWM**: notes: 8x PWM via 40-pin GPIO header
- **PCIe**: notes: M.2 M-Key PCIe 3.0 x4 for NVMe

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO1 | Digital I/O |  | digital-input, digital-output |
| GPIO2 | Digital I/O |  | digital-input, digital-output |
| GPIO3 | Digital I/O |  | digital-input, digital-output |
| GPIO4 | Digital I/O / SPI | SPI | digital-input, digital-output |
| GPIO5 | Digital I/O / UART | UART | digital-input, digital-output |
| GPIO6 | Digital I/O / PWM | PWM | digital-input, digital-output, pwm |

## Description

## Overview

The NanoPC-T6 Plus is FriendlyElec's flagship single board computer powered by the Rockchip RK3588 — one of the most capable ARM SoCs available. With four Cortex-A76 cores at 2.4GHz and four Cortex-A53 cores at 1.8GHz, it delivers desktop-class Linux performance in a compact 110×82.5mm form factor.

Memory options span 8GB to 32GB LPDDR5 with up to 256GB eMMC, plus an M.2 M-Key slot for NVMe SSDs at PCIe 3.0 x4 speeds. Dual 2.5 Gigabit Ethernet ports, dual HDMI 2.1 outputs (8K@60Hz), one HDMI input (4K@60Hz), dual MIPI-CSI camera inputs, and dual MIPI-DSI display outputs make it a powerhouse for media, networking, and AI applications.

The integrated 6 TOPS NPU accelerates machine learning inference, while the Mali-G610 MP4 GPU handles graphics workloads. The board runs FriendlyWrt, Ubuntu, Debian, Android 14, Proxmox VE, and Alpine Linux, with a 40-pin GPIO header providing extensive I/O expansion.

## Where to Buy

- [FriendlyElec](https://openhardware.directory/r?to=https%3A%2F%2Fwww.friendlyelec.com%2Findex.php%3Froute%3Dproduct%2Fproduct%26product_id%3D315&ref=openhardware.directory&product=nanopc-t6-plus&source=md-export) — $245.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.friendlyelec.com%2Findex.php%3Froute%3Dproduct%2Fproduct%26product_id%3D315&ref=openhardware.directory&product=nanopc-t6-plus&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.friendlyelec.com%2Fwiki%2Findex.php%2FNanoPC-T6_Plus&ref=openhardware.directory&product=nanopc-t6-plus&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Ffriendlyarm%2Fsd-fuse_rk3588&ref=openhardware.directory&product=nanopc-t6-plus&source=md-export)

## Tags

`friendlyelec`, `nanopc`, `rk3588`, `sbc`, `8k`, `nvme`, `2.5gbe`, `npu`, `hdmi-in`

## Images

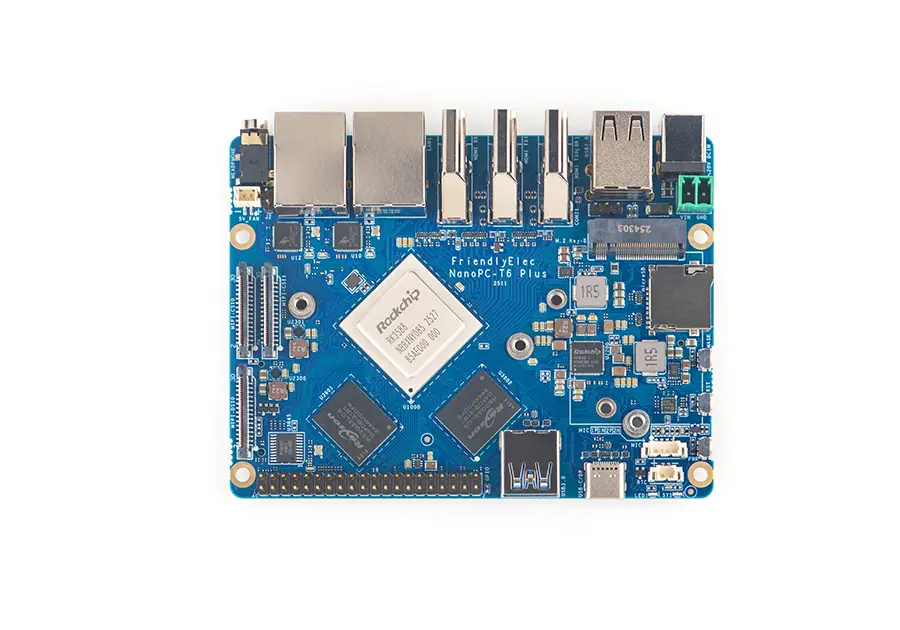

![NanoPC-T6 Plus](https://nbg1.your-objectstorage.com/openhardware-directory/entities/nanopc-t6-plus/a2b4eceac19f.jpg)

---
