LILYGO T-Display K230
AI-capable development board powered by KENDRYTE K230 dual-core 64-bit RISC-V SoC running at 1.6GHz with KPU neural network accelerator, 4.1" AMOLED display, and LoRa connectivity in multiple frequency bands.
$98.79
Tap any value to browse matching devices
Specifications
Components
4.1-inch AMOLED display driver IC providing 568x1232 RGB resolution
Long-range LoRa radio transceiver available in 433/868/915/923MHz variants
Bus Interfaces
Overview

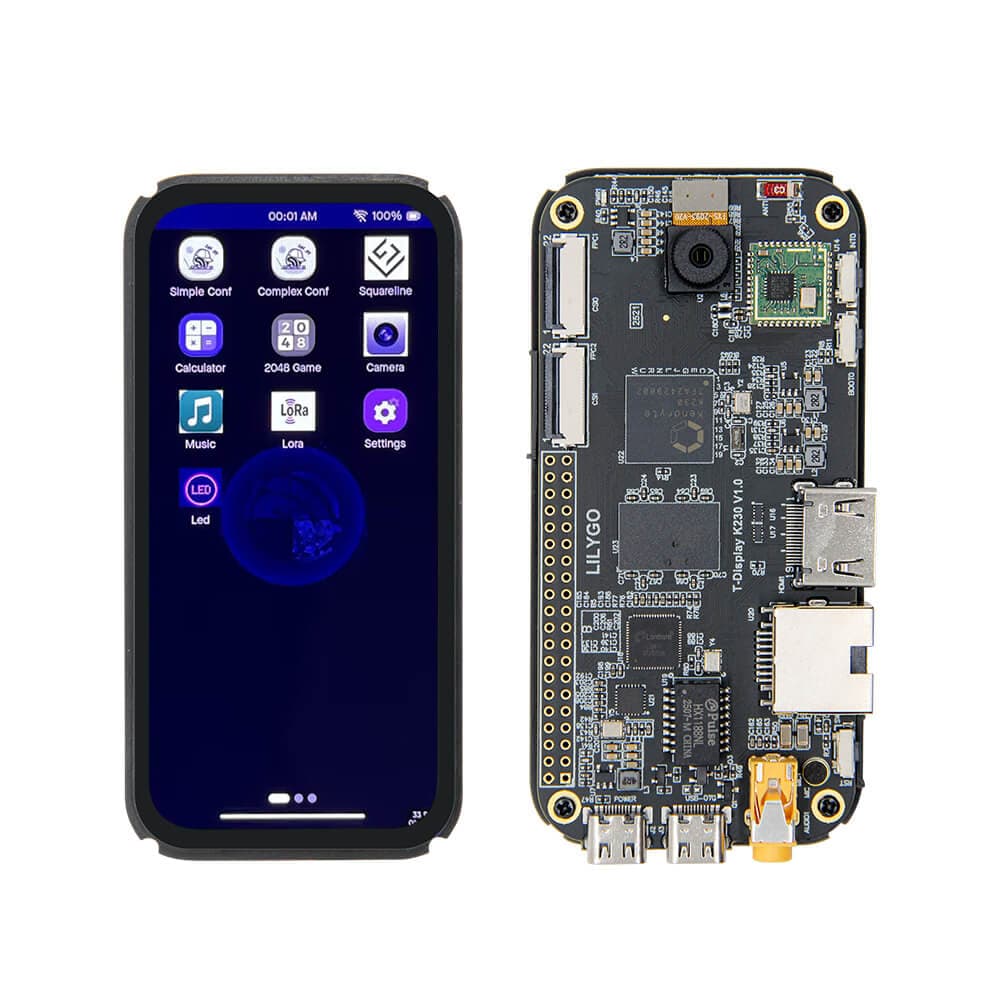

The LILYGO T-Display K230 is a cutting-edge AI development board based on the Canaan KENDRYTE K230, a dual-core 64-bit RISC-V SoC with CPU1 at 1.6GHz and CPU0 at 800MHz. The K230 integrates a KPU (Knowledge Processing Unit) neural network accelerator, DPU, GPU, VPU with H.264/H.265 encode/decode, enabling real-time edge AI inference. The board features a 4.1-inch AMOLED display (568×1232 resolution, RM69A10 driver), runs Linux or MicroPython/CanMV, and supports LoRa communication via SX1262 in 433/868/915/923MHz variants. Dimensions are 104×51×15.5mm and charging is via USB at 5V/500mA.
Use Cases
4IoT
Internet of Things applications including connected sensors, actuators, and smart devices that communicate over WiFi, BLE, LoRa, or other wireless protocols.
Security Camera
WiFi-connected camera for surveillance, motion detection, and remote video monitoring.
Smart Home Dashboard
Wall-mounted or tabletop display showing Home Assistant dashboards, sensor readings, and smart home controls.
Digital Signage
Driving displays for advertising, information kiosks, or menu boards with 4K video and dynamic content.
