# Radxa Rock S0

> Tiny Rockchip RK3308B SBC with up to 512MB DDR3, 8GB eMMC, microSD, WiFi 4, Bluetooth 5.0, and USB-C OTG — a postage-stamp Linux board for IoT and audio applications.

## Quick Facts

- **Brand:** Radxa
- **Board Type:** linux-sbc
- **Price:** ~$13.99
- **Product Readiness:** consumer
- **CPU:** Rockchip RK3308B
- **CPU Architecture:** ARM Cortex-A35
- **CPU Cores:** 4
- **RAM:** 256MB / 512MB DDR3
- **Flash:** 4GB / 8GB eMMC
- **Power:** 5V
- **Operating Voltage:** 3.3V
- **Antenna:** U.FL/IPEX
- **SD Card:** microSD

## Connectivity

- **Wifi:** WiFi 4 (802.11n)
- **Bluetooth:** BLE 5.0

## Open Source

- **Firmware:** No
- **Schematics:** Yes
- **PCB Layout:** No

## Compatible Firmware

armbian

## Use Cases

- iot
- audio
- embedded
- voice-assistant

## Description

## Overview

The Radxa Rock S0 is one of the smallest Linux-capable single-board computers in the Radxa lineup, powered by the Rockchip RK3308B quad-core Cortex-A35 SoC. With a postage-stamp footprint, it targets deeply embedded applications — voice assistants, IoT gateways, audio streaming, and minimal-footprint Linux nodes. RAM is modest at 256 MB or 512 MB of DDR3, paired with 4 GB or 8 GB of eMMC flash and a microSD slot for additional storage.

Wireless connectivity is provided by an onboard WiFi 4 (802.11n) and Bluetooth 5.0 module, with an optional external antenna connector for improved range. There is no wired Ethernet port. The USB-C port serves as both the OTG data interface and 5 V power input. The RK3308B includes a built-in 8-channel audio codec, making the Rock S0 well-suited for smart speaker and voice capture projects.

Armbian provides minimal/IoT images based on Ubuntu 24.04 and Debian 13 for the Rock S0, with kernel 6.18 support. The board requires the `rkdeveloptool` utility and MASKROM mode for direct eMMC flashing, and supports CPU overclocking to 1.3 GHz via device tree overlays.

## Where to Buy

- [Arace Tech](https://openhardware.directory/r?to=https%3A%2F%2Farace.tech%2Fproducts%2Fradxa-rock-s0&ref=openhardware.directory&product=radxa-rock-s0&source=md-export) — $13.99

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fradxa.com%2Fproducts%2Frockpi%2Fs0&ref=openhardware.directory&product=radxa-rock-s0&source=md-export)
- [armbian](https://openhardware.directory/r?to=https%3A%2F%2Fwww.armbian.com%2Fradxa-rock-s0%2F&ref=openhardware.directory&product=radxa-rock-s0&source=md-export)

## Tags

`radxa`, `rock-s0`, `rk3308b`, `sbc`, `linux`, `armbian`, `tiny`, `iot`, `audio`, `wifi`

## Images

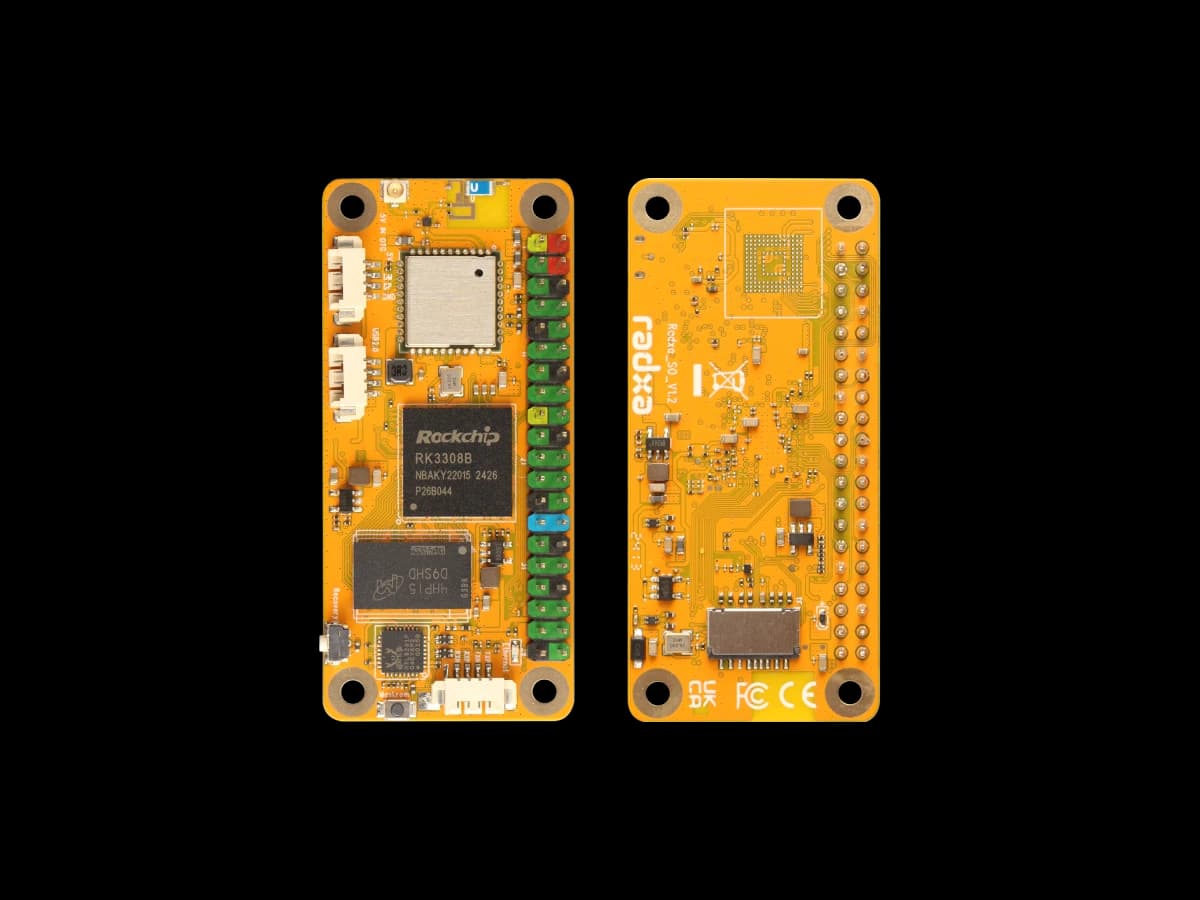

![Radxa Rock S0](https://nbg1.your-objectstorage.com/openhardware-directory/entities/radxa-rock-s0/0ff6127bf08c.webp)

---
