# Mekotronics R58-HD

> Triple RK3588 multi-display SBC with 6 HDMI outputs for video walls and digital signage, running Armbian Linux.

## Quick Facts

- **Brand:** Mekotronics
- **Price:** ~$371
- **CPU:** ARM Cortex-A76 ×4 @ 2.4GHz + Cortex-A55 ×4 @ 1.8GHz (3× RK3588)
- **CPU Architecture:** ARM big.LITTLE (Cortex-A76 + A55)
- **CPU Cores:** 24 total (3× RK3588 octa-core)
- **RAM:** Up to 16GB LPDDR4X per SoC (up to 48GB total)
- **Flash:** Up to 128GB eMMC per SoC + 2.5" SATA HDD slot
- **USB:** 5× USB 3.0, 2× USB 2.0, 1× USB Type-C
- **Power:** 12V DC
- **Operating Voltage:** 3.3V
- **Dimensions:** 440 × 330 × 44mm (1U rack)
- **Antenna:** Built-in PCB antenna (WiFi 6 + BT 5.x)

## Connectivity

- **Ethernet:** 5× Gigabit Ethernet (multiple ports)
- **Wifi:** 802.11 a/b/g/n/ac/ax (WiFi 6)
- **Bluetooth:** Bluetooth 5.x

## Use Cases

- digital-signage
- video-wall-controller

## Components

- **RK3588** (soc): Three Rockchip RK3588 SoCs each with 4× Cortex-A76 @ 2.4GHz + 4× Cortex-A55 @ 1.8GHz, Mali-G610 GPU, and 6 TOPS NPU. Each drives 2 HDMI outputs for total 6-display video wall capability. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.rock-chips.com%2Fa%2Fen%2Fproducts%2FRK35_Series%2F2022%2F0926%2F1660.html&ref=openhardware.directory&product=mekotronics-r58-hd&source=md-export)

## Description

## Overview

The Mekotronics R58-HD is a powerful multi-display computing platform based on three Rockchip RK3588 SoCs, designed for professional video wall and digital signage deployments. Each RK3588 chip features an octa-core ARM big.LITTLE CPU (4× Cortex-A76 @ 2.4GHz + 4× Cortex-A55 @ 1.8GHz), delivering exceptional parallel processing capability for driving multiple high-resolution displays simultaneously.

With 6 HDMI outputs, the R58-HD can drive a 6-screen video wall or display independent content on each screen, making it ideal for retail signage, broadcast, and command center applications. The board also features HDMI input capability, multiple USB ports, and up to 5 Ethernet ports for robust connectivity. Each RK3588 integrates a 6 TOPS NPU for edge AI inference tasks.

The R58-HD runs Armbian (Debian/Ubuntu-based Linux), giving users full control over the OS and software stack. It supports standard Armbian builds and benefits from the active Armbian community for long-term software support.

## Where to Buy

- [Mekotronics Official](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mekotronics.com%2Fh-pd-85.html&ref=openhardware.directory&product=mekotronics-r58-hd&source=md-export) — Contact for pricing

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mekotronics.com%2Fh-pd-85.html&ref=openhardware.directory&product=mekotronics-r58-hd&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwww.armbian.com%2Fmekotronics-r58-hd%2F&ref=openhardware.directory&product=mekotronics-r58-hd&source=md-export)

## Tags

`rk3588`, `video-wall`, `digital-signage`, `multi-display`, `armbian`, `linux-sbc`

## Images

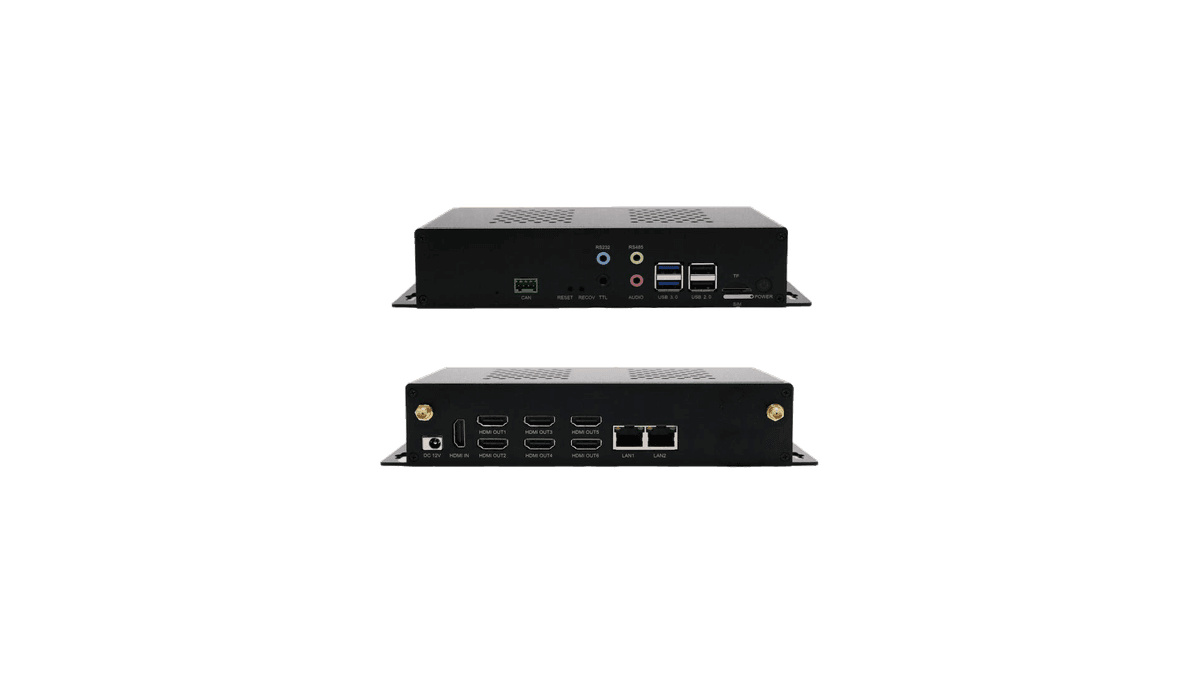

![Mekotronics R58-HD](https://nbg1.your-objectstorage.com/openhardware-directory/entities/mekotronics-r58-hd/e39e8a3a9611.png)

---
