# Mekotronics R58-4X4

> RK3588 Arm PC with 4×HDMI inputs (4K@60Hz each), 1×HDMI 2.1 output (8K@60Hz), WiFi 6, GbE, M.2 NVMe, 4G LTE support, and up to 16GB RAM — a dedicated multi-source HDMI capture and digital signage computer.

## Quick Facts

- **Brand:** Mekotronics
- **Price:** ~$189
- **CPU:** ARM Cortex-A76 ×4 @ 2.4GHz + Cortex-A55 ×4 @ 1.8GHz
- **CPU Architecture:** ARM big.LITTLE (Cortex-A76 + A55)
- **CPU Cores:** 8
- **RAM:** 4GB / 8GB / 16GB LPDDR4X
- **Flash:** 32GB / 64GB / 128GB eMMC 5.1 + M.2 NVMe (PCIe)
- **USB:** 2× USB 3.0, 2× USB 2.0, 1× USB Type-C
- **Power:** 12V DC (aluminum enclosure)
- **Operating Voltage:** 3.3V
- **SD Card:** microSD

## Connectivity

- **Ethernet:** Gigabit Ethernet
- **Wifi:** 802.11 a/b/g/n/ac/ax (WiFi 6)
- **Cellular:** 4G LTE / GPS via mini PCIe + Nano SIM

## Use Cases

- digital-signage
- video-streaming
- computer-vision
- edge-ai
- embedded-linux
- home-media-server

## Components

- **RK3588** (soc): Rockchip RK3588: 4× Cortex-A76 @ 2.4GHz + 4× Cortex-A55 @ 1.8GHz, Mali-G610 MP4 GPU, 6 TOPS NPU, 8K H.265/VP9 decode @ 60fps, 8K HDMI 2.1 output. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.rock-chips.com%2Fa%2Fen%2Fproducts%2FRK35_Series%2F2022%2F0926%2F1660.html&ref=openhardware.directory&product=mekotronics-r58-4x4&source=md-export)

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| USB 3.0 x2 | USB 3.0 Host | USB | digital-input, digital-output |
| USB 2.0 x2 | USB 2.0 Host | USB | digital-input, digital-output |
| HDMI IN x4 | 4× HDMI Input (4K@60Hz) | HDMI | digital-input |
| HDMI OUT | HDMI 2.1 Output (8K@60Hz) | HDMI | digital-output |

## Description

## Overview

The Mekotronics R58-4X4 is a purpose-built Rockchip RK3588 embedded PC designed for multi-source video capture, digital signage, and broadcast applications. Its defining feature is four independent HDMI input ports, each accepting sources up to 4K@60Hz simultaneously — a capability unavailable on standard SBCs. Combined with an HDMI 2.1 output supporting 8K@60Hz, the board acts as a multi-input video matrix or capture station.

Built on the RK3588 octa-core ARM SoC with 6 TOPS NPU, the system supports up to 16GB LPDDR4X RAM and 128GB eMMC, with an M.2 NVMe slot for additional high-speed storage. Connectivity includes Gigabit Ethernet, WiFi 6, USB 3.0 and USB 2.0 ports, and a USB Type-C port, plus a mini PCIe slot with Nano SIM for optional 4G LTE or GPS modules.

The RK3588's hardware 8K video decoder (H.265/VP9 @ 60fps) and 4K encoder handle transcoding and recording of captured HDMI streams with minimal CPU overhead. Android, Debian, Buildroot, and Armbian are all supported.

The R58-4X4 is used in video wall control systems, digital signage managers, multi-source recording setups, broadcast monitoring stations, and video conference rooms where multiple HDMI sources need to be managed by a single low-power ARM computer.

## Where to Buy

- [Mekotronics](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mekotronics.com%2F&ref=openhardware.directory&product=mekotronics-r58-4x4&source=md-export) — 189.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mekotronics.com%2F&ref=openhardware.directory&product=mekotronics-r58-4x4&source=md-export)
- [datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.rock-chips.com%2Fa%2Fen%2Fproducts%2FRK35_Series%2F2022%2F0926%2F1660.html&ref=openhardware.directory&product=mekotronics-r58-4x4&source=md-export)

## Tags

`rk3588`, `linux`, `arm`, `hdmi-input`, `digital-signage`, `mekotronics`, `video-capture`, `rockchip`, `embedded-pc`

## Images

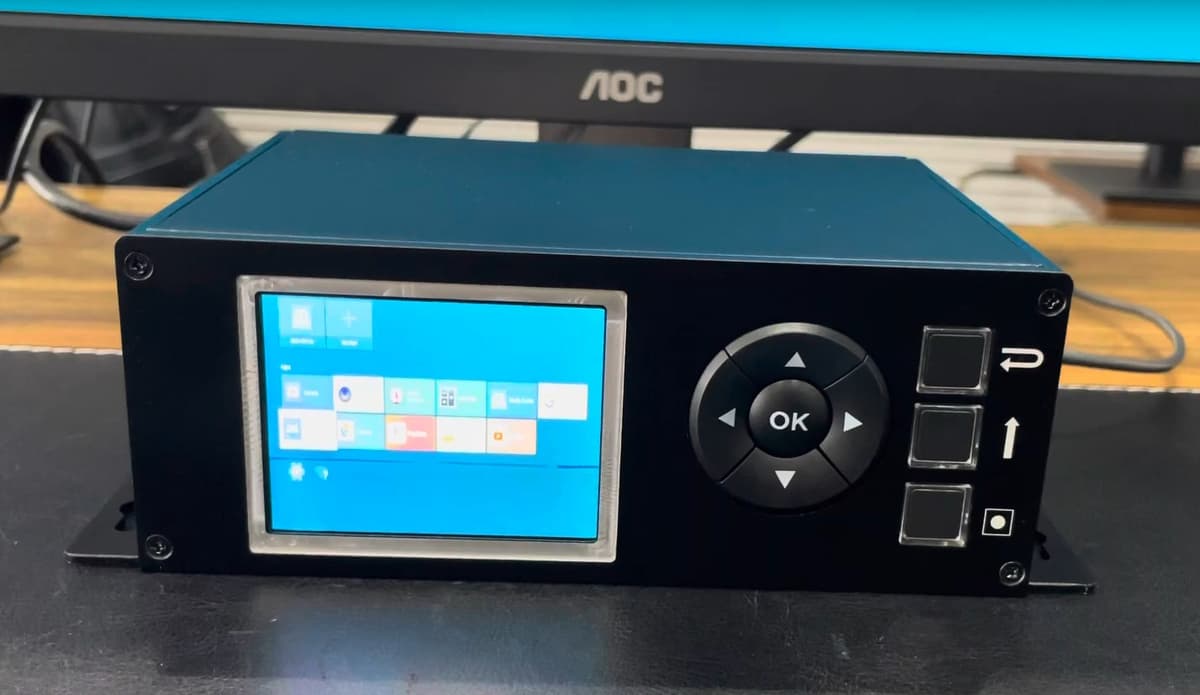

![Mekotronics R58-4X4](https://nbg1.your-objectstorage.com/openhardware-directory/entities/mekotronics-r58-4x4/124766d06428.jpg)

---
