# BeagleBone Black Industrial

> Industrial-rated BeagleBone Black with extended temperature range (-40°C to +85°C), TI Sitara AM3358 ARM Cortex-A8 at 1 GHz, full cape and software compatibility, for harsh environment deployments.

## Quick Facts

- **Brand:** BeagleBoard
- **Board Type:** Single Board Computer
- **Price:** ~$66.19
- **Product Readiness:** consumer
- **CPU:** TI Sitara AM3358 (ARM Cortex-A8 @ 1 GHz)
- **CPU Architecture:** ARM32
- **CPU Cores:** 1
- **RAM:** 512MB DDR3L
- **Flash:** 4GB eMMC
- **USB:** USB 2.0 (client,host)
- **Power:** 5V DC via USB or expansion header
- **Operating Voltage:** 3.3V
- **Operating Temp:** -40°C to +85°C
- **SD Card:** MicroSD

## Connectivity

- **Ethernet:** 10/100M Ethernet

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** Yes

## Compatible Firmware

Debian Linux

## Use Cases

- industrial-automation
- factory-automation
- harsh-environment
- iot-gateway
- industrial-control
- building-automation

## Components

- **AM3358** (processor): Texas Instruments Sitara AM3358 industrial-grade SoC with 1GHz ARM Cortex-A8, SGX530 graphics, NEON accelerator, and 2x 200MHz PRUs, rated for -40°C to +85°C — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.ti.com%2Fproduct%2FAM3358&ref=openhardware.directory&product=beaglebone-black-industrial&source=md-export)
- **512MB DDR3L** (memory): 512MB DDR3L SDRAM rated for industrial temperature range — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.ti.com%2Fproduct%2FAM3358&ref=openhardware.directory&product=beaglebone-black-industrial&source=md-export)
- **4GB eMMC** (storage): 4GB embedded MMC flash storage for OS and applications — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.ti.com%2Fproduct%2FAM3358&ref=openhardware.directory&product=beaglebone-black-industrial&source=md-export)

## Protocols

- **USB 2.0**
- **HDMI**
- **UART**
- **I2C**
- **SPI**
- **ADC**
- **PWM**
- **JTAG**

## Accessories

- Servo Cape
- Fan Cape
- Robotics Cape
- Relay Cape
- Proto Cape
- Power Cape
- Load Cape
- Motor Cape
- Comms Cape

## Available Software

- **[Debian Linux]()** (open-source)

## Description

## Overview

BeagleBone Black Industrial answers the need for an industrial rated single board computer with extended temperature range of -40°C to +85°C. Software and cape compatible with the original BeagleBone Black, it provides a low-cost, community-supported platform for industrial applications in harsh temperature environments.

## Key Features

- **Industrial Temperature Range**: -40°C to +85°C
- **Full Compatibility**: Software and cape compatible with BeagleBone Black
- **Real-time Units**: 2x 32-bit 200-MHz programmable real-time units (PRUs)
- **Quick Boot**: Linux in under 10 seconds
- **Cape Ecosystem**: Works with all existing BeagleBone Black capes

## Connectivity

- Ethernet
- USB client for power and communications
- USB host
- HDMI
- 2x 46-pin expansion headers

## Software Support

- Debian Linux (IoT images)
- Same software stack as BeagleBone Black

## Where to Buy

- [DigiKey](https://openhardware.directory/r?to=https%3A%2F%2Fwww.digikey.com%2Fen%2Fproducts%2Fdetail%2Fbeagleboard-by-seeed-studio%2F102110423%2F12342853&ref=openhardware.directory&product=beaglebone-black-industrial&source=md-export) — $66.19
- [Mouser](https://openhardware.directory/r?to=https%3A%2F%2Fwww.mouser.com%2FProductDetail%2FBeagleBoard-by-Seeed-Studio%2F102110423&ref=openhardware.directory&product=beaglebone-black-industrial&source=md-export) — $66.19
- [Element14](https://openhardware.directory/r?to=https%3A%2F%2Freferral.element14.com%2FOrderCodeView%3Ffsku%3D3520083%26nsku%3D88AH7403&ref=openhardware.directory&product=beaglebone-black-industrial&source=md-export) — $66.19

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.beagleboard.org%2Fboards%2Fbeaglebone-black-industrial&ref=openhardware.directory&product=beaglebone-black-industrial&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fopenbeagle.org%2Fbeagleboard%2Fbeaglebone-black&ref=openhardware.directory&product=beaglebone-black-industrial&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.beagleboard.org%2Flatest%2Fboards%2Fbeaglebone%2Fblack%2F&ref=openhardware.directory&product=beaglebone-black-industrial&source=md-export)

## Tags

`beagleboard`, `industrial`, `arm-cortex-a8`, `single-board-computer`, `linux`, `open-hardware`, `extended-temperature`, `rugged`

## Images

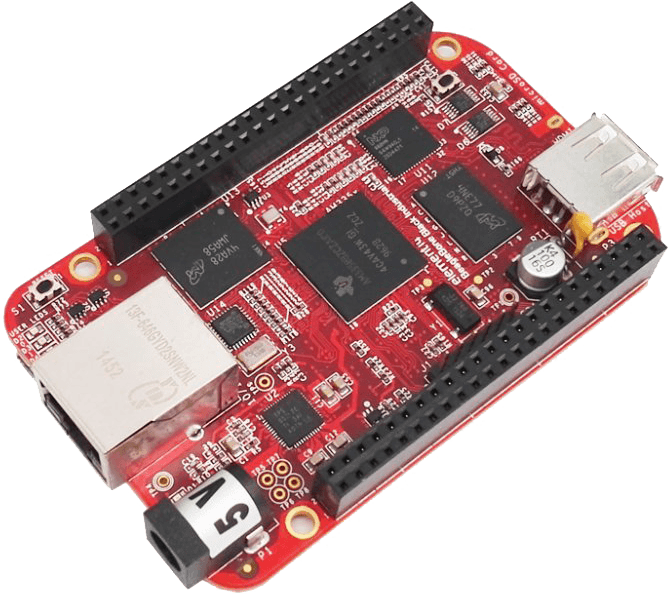

![BeagleBone Black Industrial](https://www.beagleboard.org/app/uploads/2021/04/bb-industrial.png)

---
