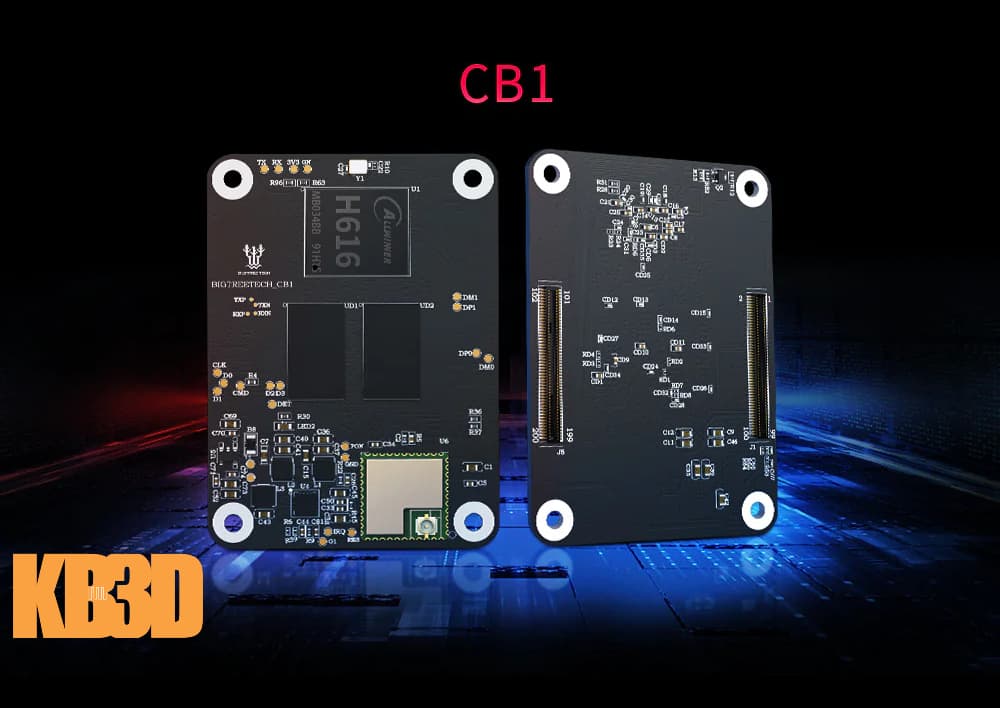

BIGTREETECH CB1 V2.2
Compact Linux compute module by BIGTREETECH, powered by the Allwinner H616 SoC with 1GB DDR3, 100M WiFi + 100M Ethernet, and microSD — designed as a drop-in Raspberry Pi CM4 replacement for 3D printer boards running Klipper.
$25.00
Tap any value to browse matching devices
Specifications
Components
Allwinner H616 quad-core Cortex-A53 @ 1.5GHz SoC with Mali-G31 GPU and 4K H.265 decode.
Overview
The BIGTREETECH CB1 is a compact Linux compute module designed as a cost-effective drop-in replacement for the Raspberry Pi Compute Module 4 (CM4) in 3D printer control boards. Powered by the Allwinner H616 quad-core Cortex-A53 SoC, it provides enough CPU performance to run Klipper firmware host software, OctoPrint, and related 3D printing management applications on a Linux operating system.
The CB1 includes 1GB of DDR3 RAM and provides WiFi 802.11n connectivity via a built-in module, enabling wireless access to OctoEverywhere, Mainsail, and Fluidd web interfaces without a wired Ethernet connection. Storage is handled by a microSD card slot. The module connects to compatible BIGTREETECH base boards (such as the Manta series) via the standard CM4 connector, making it mechanically compatible with an existing CM4-based board ecosystem.
Running Armbian or BIGTREETECH's custom Debian image, the CB1 significantly lowers the cost barrier for Klipper-based 3D printer setups compared to using a genuine Raspberry Pi. It is an excellent choice for makers building or upgrading Voron, Trident, or other Klipper-based printers who want a Linux host module without the Raspberry Pi price premium.
Use Cases
43d-printer-controller
klipper-host
Embedded Linux
Running a full Linux distribution in embedded or headless applications, such as servers, gateways, edge devices, and automation controllers.
Compute Module
System-on-module (SoM) form factor boards designed for integration into custom carrier boards and industrial products.
