LILYGO T7 V1.3 Mini32 ESP32

Overview

The LILYGO T7 V1.3 Mini32 is a low-cost, compact ESP32 development board designed for projects where board size and price are primary constraints. The "Mini 32" designation reflects its reduced footprint while retaining full ESP32 capabilities including dual-core processing, WiFi, and Bluetooth.

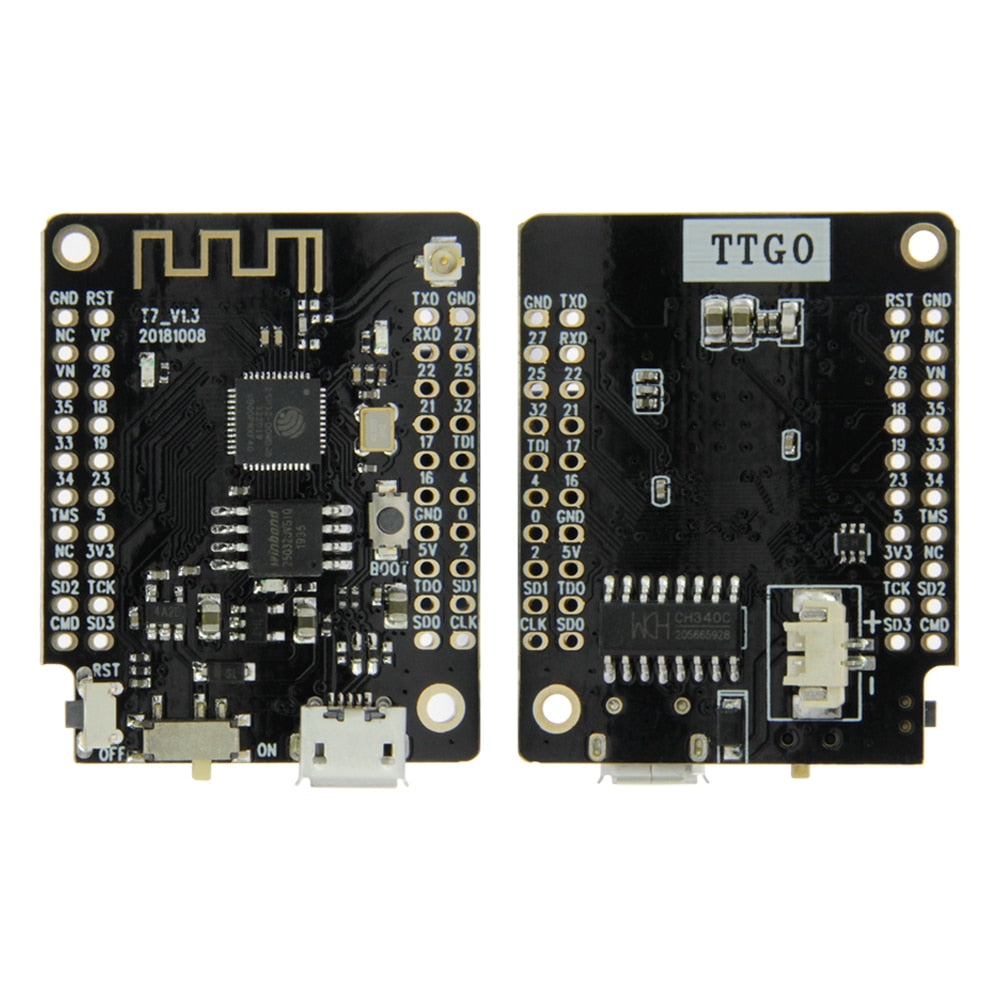

The board integrates a TP4054 lithium battery charger, allowing single-cell LiPo batteries to be connected via a JST 2-pin 1.25mm connector. A CH340C USB-to-serial chip handles flashing and serial communication. The 25Q32 provides 4MB of SPI Flash storage for application code and data.

Firmware Compatibility

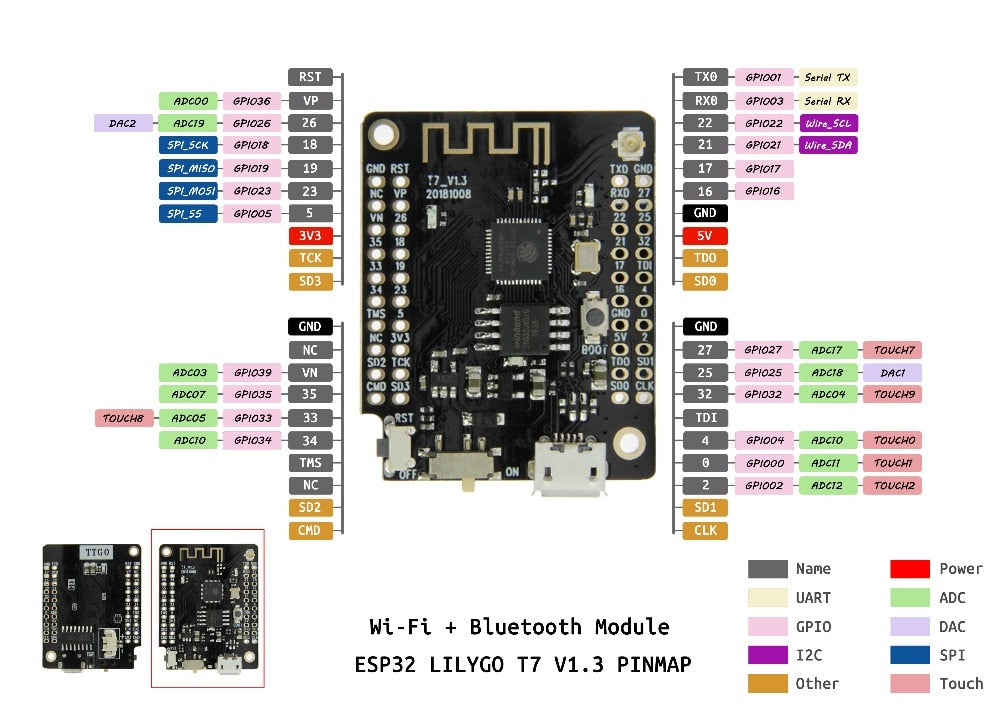

The T7 Mini32 supports Arduino IDE, ESP-IDF, and MicroPython. Standard ESP32 Arduino core libraries apply. The GitHub repository at LilyGO/ESP32-MINI-32-V1.3 contains example code and pinout diagrams.

Flashing Guide

1. Install CH340C USB drivers if required for your OS.
2. Connect via Micro USB cable.
3. Install ESP32 Arduino core via Boards Manager.
4. Select "ESP32 Dev Module" in Arduino IDE.
5. Click Upload; hold Boot button if the board does not enter download mode automatically.
