# LattePanda Mu N100

> Card-sized x86 compute module with Intel N100 quad-core (up to 3.4GHz), 8GB LPDDR5, 64GB eMMC, 9 PCIe 3.0 lanes, triple display output, and open-source KiCAD carrier board design for custom embedded systems.

## Quick Facts

- **Brand:** DFRobot
- **Board Type:** compute-module
- **Price:** ~$149
- **Product Readiness:** ready-to-use
- **CPU:** Intel N100 quad-core @ 3.4GHz turbo, Intel UHD Graphics
- **CPU Architecture:** x86-64 (Alder Lake-N)
- **CPU Cores:** 4
- **RAM:** 8GB LPDDR5 4800MT/s (IBECC)
- **Flash:** 64GB eMMC 5.1
- **Power:** 9-20V DC input
- **Operating Voltage:** 3.3V
- **Operating Temp:** 0°C to +60°C
- **Dimensions:** 69.6 × 60mm
- **Weight:** 36g

## Use Cases

- edge-computing
- industrial-automation
- iot-gateway
- digital-signage
- home-lab-networking

## Components

- **Intel-N100** (sbc): Intel Processor N100 quad-core x86 CPU at up to 3.4GHz with Intel UHD Graphics and configurable 6-35W TDP. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fwww.intel.com%2Fcontent%2Fwww%2Fus%2Fen%2Fproducts%2Fsku%2F231803%2Fintel-processor-n100-6m-cache-up-to-3-40-ghz%2Fspecifications.html&ref=openhardware.directory&product=lattepanda-mu-n100&source=md-export)

## Description

## Overview

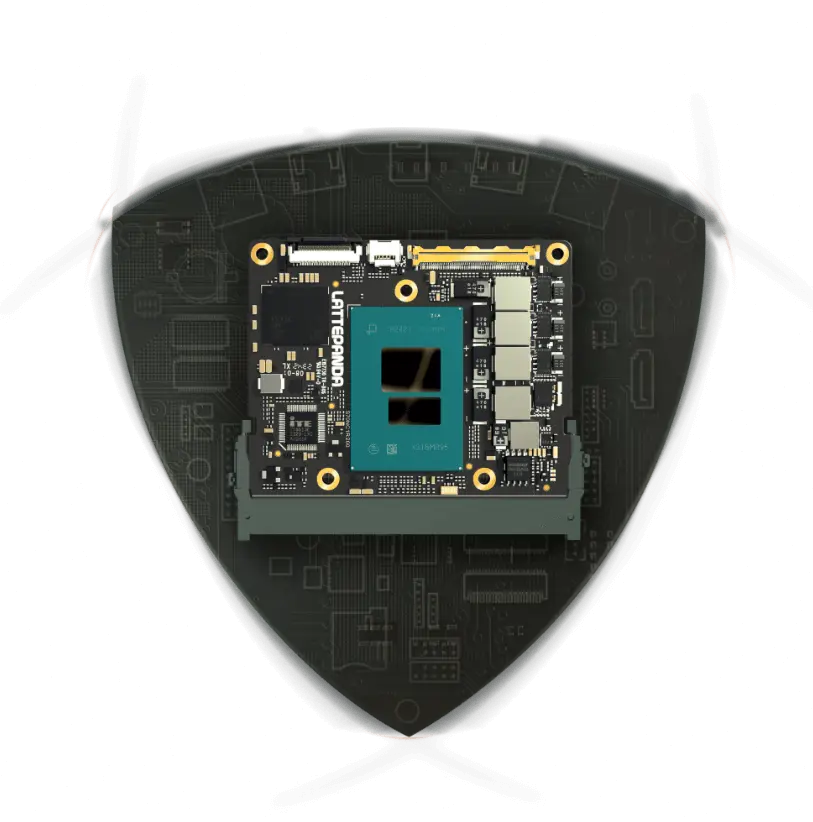

The LattePanda Mu N100 is a credit-card-sized (69.6 x 60mm) x86 compute module built around the Intel Processor N100, a quad-core chip with up to 3.4GHz turbo boost and a configurable TDP from 6W to 35W. With 8GB LPDDR5 RAM (IBECC-supported) and 64GB eMMC 5.1 storage, it delivers full Windows 10/11 and Ubuntu compatibility in a compact, embeddable form factor.

The module exposes an extensive I/O set through its edge connector: up to 9 PCIe 3.0 lanes, 3 HDMI/DisplayPort outputs (4K@60Hz), 8 USB 2.0 ports, up to 4 USB 3.2 Gen2 ports (10Gbps), 2 SATA 3.0 ports, and 64 expandable GPIOs. This makes it highly versatile for building custom NAS devices, network routers, industrial controllers, and thin clients.

LattePanda provides open-source KiCAD carrier board reference designs on GitHub, enabling hardware developers to design custom carrier boards tailored to their specific application. Official carrier boards include a Lite Carrier ($39) for basic evaluation and a Full-Function Evaluation Carrier ($89) with comprehensive I/O breakout. The module's compact size and flexible TDP (fanless at 6W) make it ideal for space-constrained embedded deployments.

## Where to Buy

- [DFRobot](https://openhardware.directory/r?to=https%3A%2F%2Fwww.dfrobot.com%2Fproduct-2820.html&ref=openhardware.directory&product=lattepanda-mu-n100&source=md-export) — 149.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.dfrobot.com%2Fproduct-2820.html&ref=openhardware.directory&product=lattepanda-mu-n100&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2FLattePandaTeam%2FLattePanda-Mu&ref=openhardware.directory&product=lattepanda-mu-n100&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fdocs.lattepanda.com%2Fcontent%2Fmu_edition%2Fget_started%2F&ref=openhardware.directory&product=lattepanda-mu-n100&source=md-export)

## Images

![LattePanda Mu N100](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lattepanda-mu-n100/6d9585069fc8.png)
![LattePanda Mu N100](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lattepanda-mu-n100/0fca1c2fdd08.png)
![LattePanda Mu N100](https://nbg1.your-objectstorage.com/openhardware-directory/entities/lattepanda-mu-n100/2ab2f476778f.png)

---
