MeshCore Terminal on T-Deck
Flash the LILYGO T-Deck with MeshCore firmware to create a fast, professional LoRa mesh communicator with offline maps, repeater management, signal diagnostics, and a terminal CLI — all accessible via the physical QWERTY keyboard.
Overview
MeshCore is a lightweight LoRa mesh networking firmware designed for off-grid communication, and the LILYGO T-Deck is one of its best hardware homes. The combination delivers a purpose-built communicator that boots to a usable state in approximately four seconds from cold start — a stark contrast to the longer startup times typical of general-purpose dev boards running mesh firmware.
How MeshCore Works on T-Deck
MeshCore uses a lightweight multi-hop packet routing protocol optimized for LoRa's bandwidth constraints. The T-Deck's ESP32-S3 processor, SX1262 LoRa radio, 2.8-inch color touchscreen, and physical QWERTY keyboard give users a comfortable typing experience for mesh messaging without needing a companion phone. The firmware exposes a terminal CLI for advanced diagnostics and repeater management via the keyboard.
Key Features

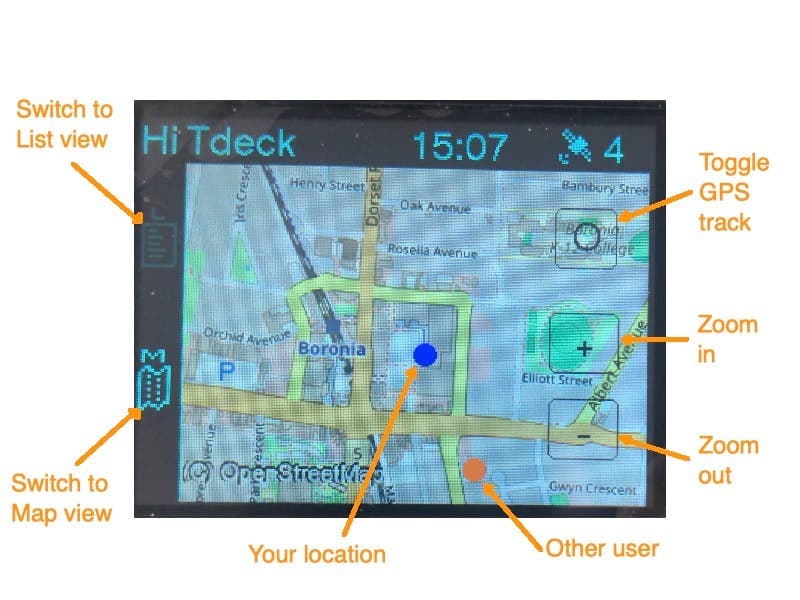

Public channel messaging and direct messages with end-to-end encryption operate out of the box. Offline raster maps stored on the microSD card show the live positions of other MeshCore nodes in your network. Trace routing lets you visualize multi-hop paths through the mesh. Remote repeater management allows password-protected access to relay nodes for diagnostics and configuration. Real-time noise and signal meter graphs display LoRa channel activity. Firmware can be updated via SD card or the MeshCore web flasher at flasher.meshcore.co.uk.
T-Deck Plus Advantage
The T-Deck Plus adds an integrated u-blox GPS module and makes LoRa standard, making it even more capable as a field communicator — GPS time synchronization and position reporting work without any external modules.
