ESPHome Chirp I2C Sensor Component

Overview

An ESPHome external component that enables ESP32 boards to communicate with the Chirp / Catnip Electronics I2C soil moisture sensor. Created by dyptan-io, it provides a clean YAML-based configuration for all three sensor measurements and integrates directly with Home Assistant.

Features

• Soil moisture with configurable min/max calibration points
• Temperature reading with offset adjustment
• Light intensity converted to lux using configurable formula
• Raw or calibrated output modes for each sensor

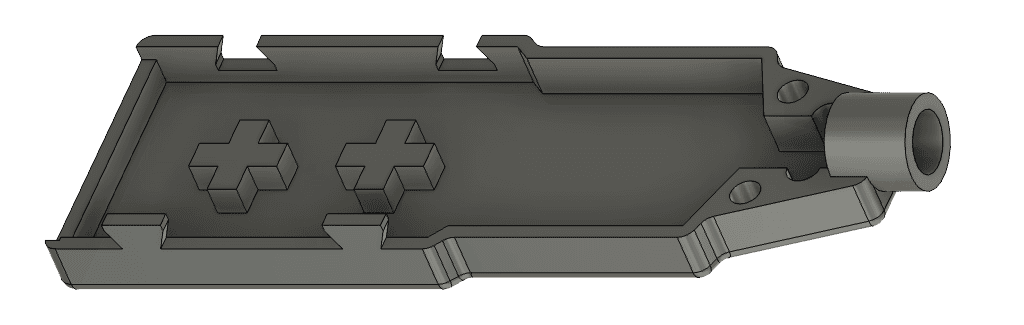

• 3D-printable sensor casing included in the repository (translucent material recommended for light sensing)

YAML Configuration

external_components:
  - source:
      type: git
      url: https://github.com/diptanw/esphome-i2c-sensor
      ref: main
    components: [chirp]

sensor:
  - platform: chirp
    moisture:
      name: "Soil Moisture"
    temperature:
      name: "Soil Temperature"
    illuminance:
      name: "Ambient Light"

Links

• GitHub Repository
