3D-Printable Case for Makerfabs ESP32 UWB Pro

An OpenSCAD-designed 3D-printable enclosure for the Makerfabs ESP32 UWB Pro board. Parametric design with STL files ready for printing, protecting the board while maintaining port access.

Visit Project

Boards:ESP32

Use Cases:IoT Prototyping

GitHub

Overview

This community project by wetterfrosch provides a 3D-printable protective case designed specifically for the Makerfabs ESP32-UWB-Pro development board. The case is designed in OpenSCAD, making it fully parametric and easy to modify for custom needs.

Features

Parametric design in OpenSCAD — easy to customize dimensions
Ready-to-print STL files included
Port access maintained for USB and other connections
Protective housing for the ESP32 UWB Pro board and DW1000 module

Files Included

case.scad — OpenSCAD source file (parametric)
Pre-rendered STL files for direct 3D printing

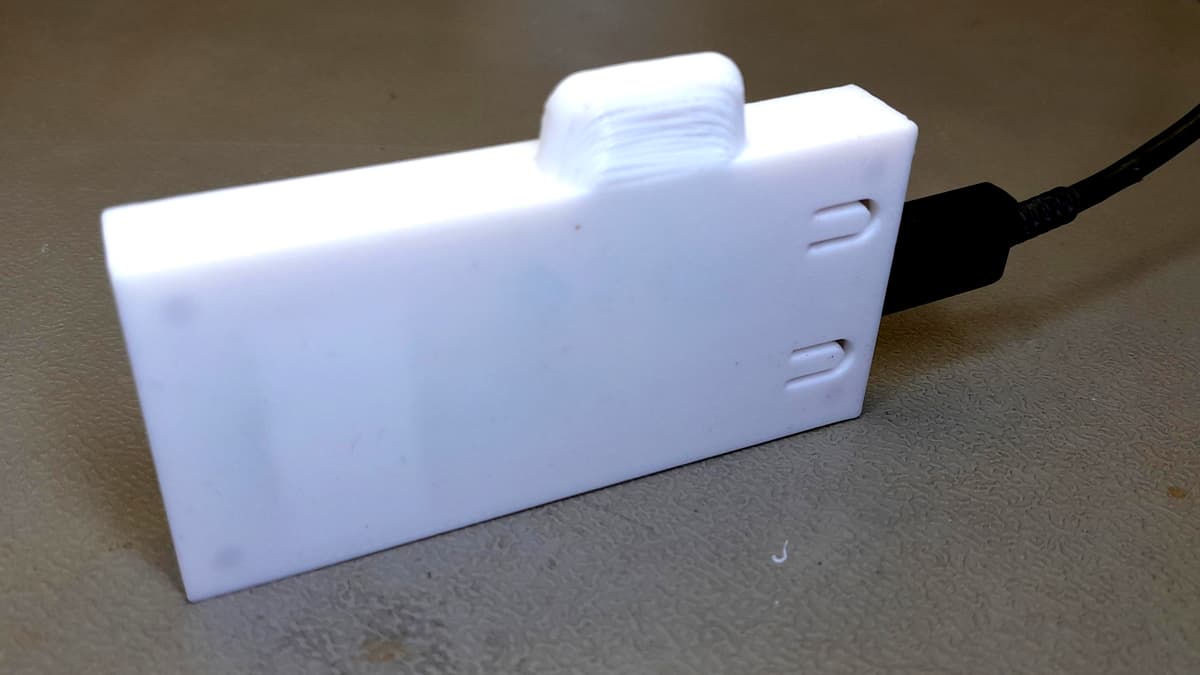

Documentation with photos showing the assembled case

Hardware

Makerfabs ESP32 UWB Pro or ESP32 UWB Pro with Display
Any FDM 3D printer

Source

Community project by wetterfrosch on GitHub.

Resources

GitHub Repository

Source code & project files

Devices Used in This Project

Makerfabs ESP32 UWB Pro with Display

Dev Board

ESP32-WROVER development board with Decawave DWM1000 UWB module for centimeter-accurate indoor positioning and ranging, featuring a 1.3\" OLED display and LiPo battery charging.

Xtensa LX6 dual-core @ 240MHz, FPU, HW crypto (AES/SHA)520KB SRAM4MBWiFi 802.11 b/g/nBLE BLE 4.2

Indoor Positioning Asset Tracking Distance Measurement Uwb Development prototyping

~$55View
