# TQ-Systems MBa8MP-RAS314

> Industrial carrier board for TQ-Systems TQMa8MPxL SOM, featuring NXP i.MX 8M Plus with quad-core Cortex-A53 + Cortex-M7, up to 4GB LPDDR4, 16GB eMMC, Gigabit Ethernet, WiFi 5, USB 3.0, and 12V DC input for industrial Linux applications.

## Quick Facts

- **Brand:** TQ-Systems
- **Board Type:** linux-sbc
- **Price:** ~$342
- **Product Readiness:** developer
- **CPU:** nxp-imx8mp
- **CPU Architecture:** ARM Cortex-A53 64-bit
- **RAM:** 2GB/4GB LPDDR4
- **Flash:** 8GB/16GB eMMC
- **USB:** USB 3.0 + USB-C
- **Power:** 12V DC
- **Operating Voltage:** 3.3V
- **SD Card:** microSD

## Connectivity

- **Wifi:** 802.11ac (WiFi 5)
- **Bluetooth:** BLE 5.0
- **Ethernet:** Gigabit

## Compatible Firmware

armbian

## Use Cases

- industrial-automation
- embedded-linux
- hmi

## Description

## Overview

The TQ-Systems MBa8MP-RAS314 is a compact industrial carrier board designed for the TQMa8MPxL System-on-Module (SOM), which is powered by the NXP i.MX 8M Plus processor. The board targets industrial automation, machine vision, and HMI applications where the combination of a real-time Cortex-M7 co-processor and a 2 TOPS NPU provides both deterministic control and local inference capabilities.

The board ships with up to 4GB LPDDR4 RAM and 16GB eMMC storage on the SOM, and is complemented by a microSD card slot for additional media. Connectivity is industrial-grade: Gigabit Ethernet, WiFi 5 (802.11ac) with Bluetooth 5.0, USB 3.0 Type-A, and a USB-C port. Power is supplied via a standard 12V DC barrel connector, making it compatible with industrial PSU infrastructure.

Armbian provides mainline-based Linux images for the MBa8MP-RAS314, enabling a full Debian or Ubuntu environment on this carrier board. The board is part of TQ-Group's industrial-grade embedded Linux ecosystem, supported by long-term hardware availability and industrial temperature ratings.

## Where to Buy

- [TQ Embedded Shop](https://openhardware.directory/r?to=https%3A%2F%2Fembeddedshop.tq-group.com%2FMBa8MP-RAS314-AB%2F354658.0101&ref=openhardware.directory&product=mba8mp-ras314&source=md-export) — $342.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.armbian.com%2Fmba8mp-ras314%2F&ref=openhardware.directory&product=mba8mp-ras314&source=md-export)

## Images

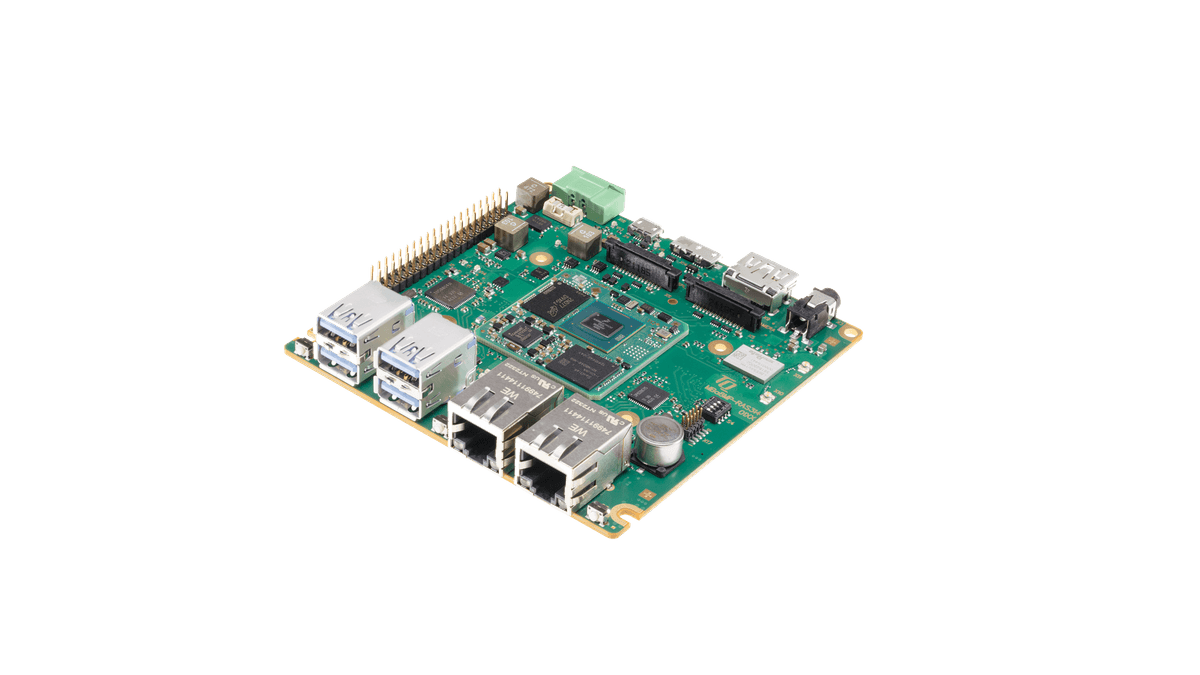

![TQ-Systems MBa8MP-RAS314](https://nbg1.your-objectstorage.com/openhardware-directory/entities/mba8mp-ras314/808eccc9444b.png)
![TQ-Systems MBa8MP-RAS314](https://nbg1.your-objectstorage.com/openhardware-directory/entities/mba8mp-ras314/cb7f7136fd30.png)
![TQ-Systems MBa8MP-RAS314](https://nbg1.your-objectstorage.com/openhardware-directory/entities/mba8mp-ras314/e0c9e49f7567.png)
![TQ-Systems MBa8MP-RAS314](https://nbg1.your-objectstorage.com/openhardware-directory/entities/mba8mp-ras314/6eb28ab60a14.png)

---
