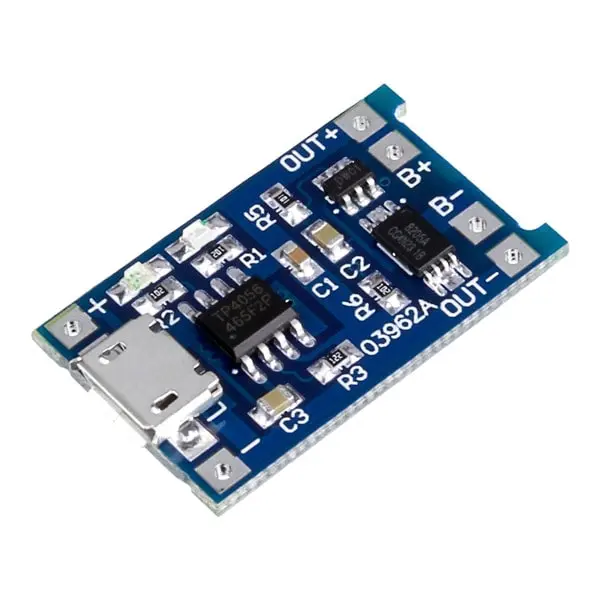

TP4056 Charge Controller Module

Name: TP4056 Charge Controller Module
Brand: OpenELAB
Price: 2.79 USD
Availability: InStock

Li-Ion/LiPo battery charging module based on the TP4056 IC with built-in battery protection circuit. Mini USB 5V input, 1A charging current. Essential for portable and battery-powered IoT projects.

Starting from

$2.79

Product Page

Use Cases

Battery Management Solar Project Portable Device

#battery-charger #lipo #li-ion #tp4056 #power-management

Tap any value to browse matching devices

Specifications

CPUN/A (charge controller module)

RAMN/A

FlashN/A

GPIO Level5V

Power Input5V via Mini USB

ChargingMini USB

Storagenone

Components

Linear Li-Ion Battery ChargerCharge ControllerDatasheet

Complete constant-current/constant-voltage linear charger for single-cell lithium-ion batteries with 1A programmable charge current

Overview

The TP4056 Charge Controller Module is a compact lithium battery charging board with integrated protection circuitry. It provides safe 1A charging for single-cell Li-Ion and LiPo batteries via Mini USB input, with LED status indicators for charging and standby states.

Key Features

1A Charging Current: Fast charging for single-cell lithium batteries
Built-in Protection: Overcharge (4.2V), over-discharge (2.5V), overcurrent, and short circuit protection
LED Indicators: Red for charging, blue/green for fully charged
Mini USB Input: Standard 5V input via Mini USB connector
Compact Size: Small form factor for embedded projects

Typical Applications

Portable IoT sensor nodes
Solar-powered battery charging systems
Handheld devices and wearables
Battery backup systems for microcontrollers

Use Cases

battery-management

View

solar-project

View

Portable Device

Battery-powered portable device for field use, data collection, or handheld applications.

View

Resources

Product Page

Official manufacturer page

Where to Buy

OpenELab

$2.79
