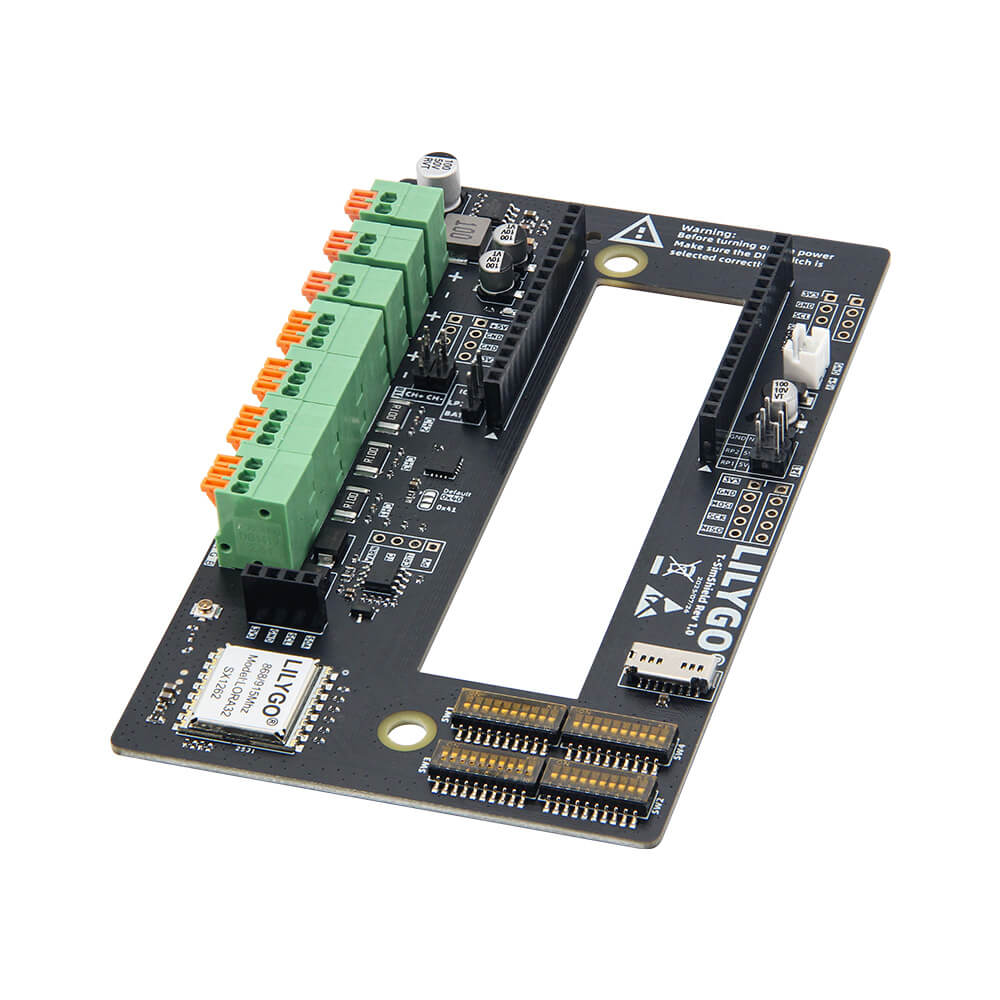

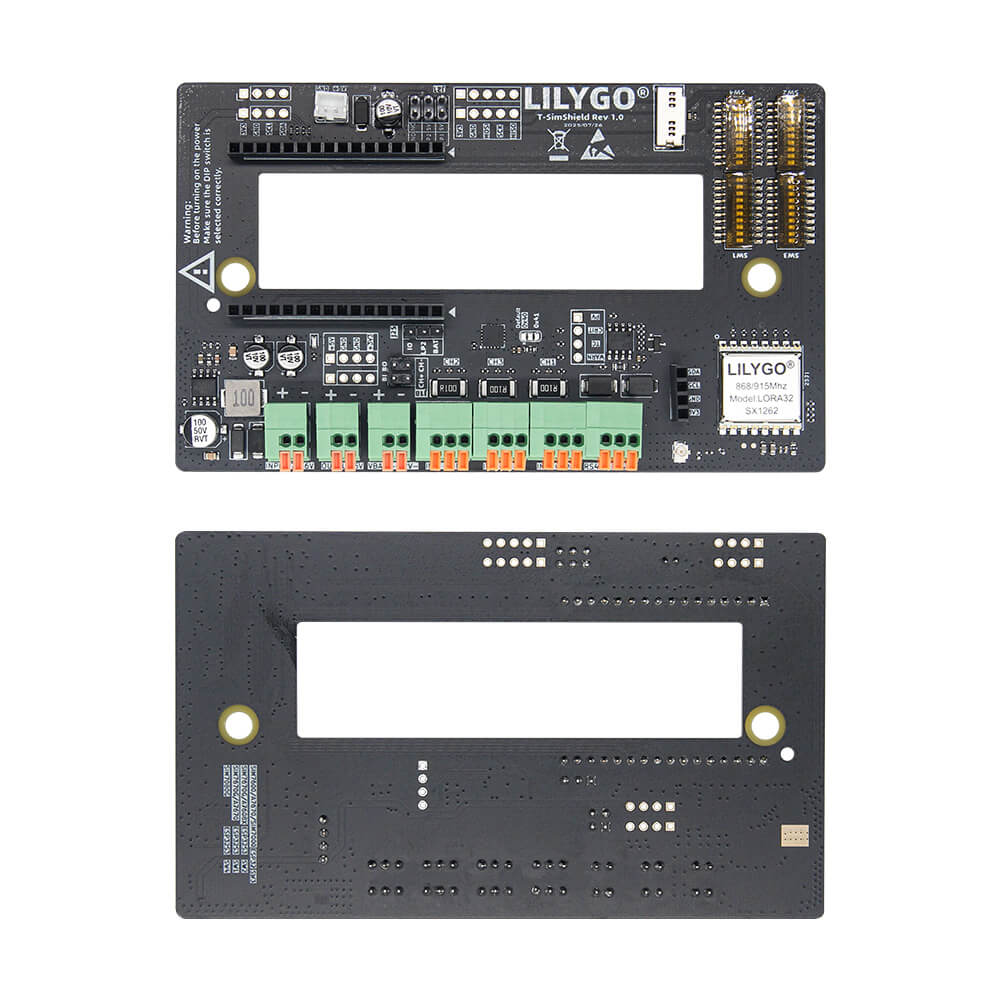

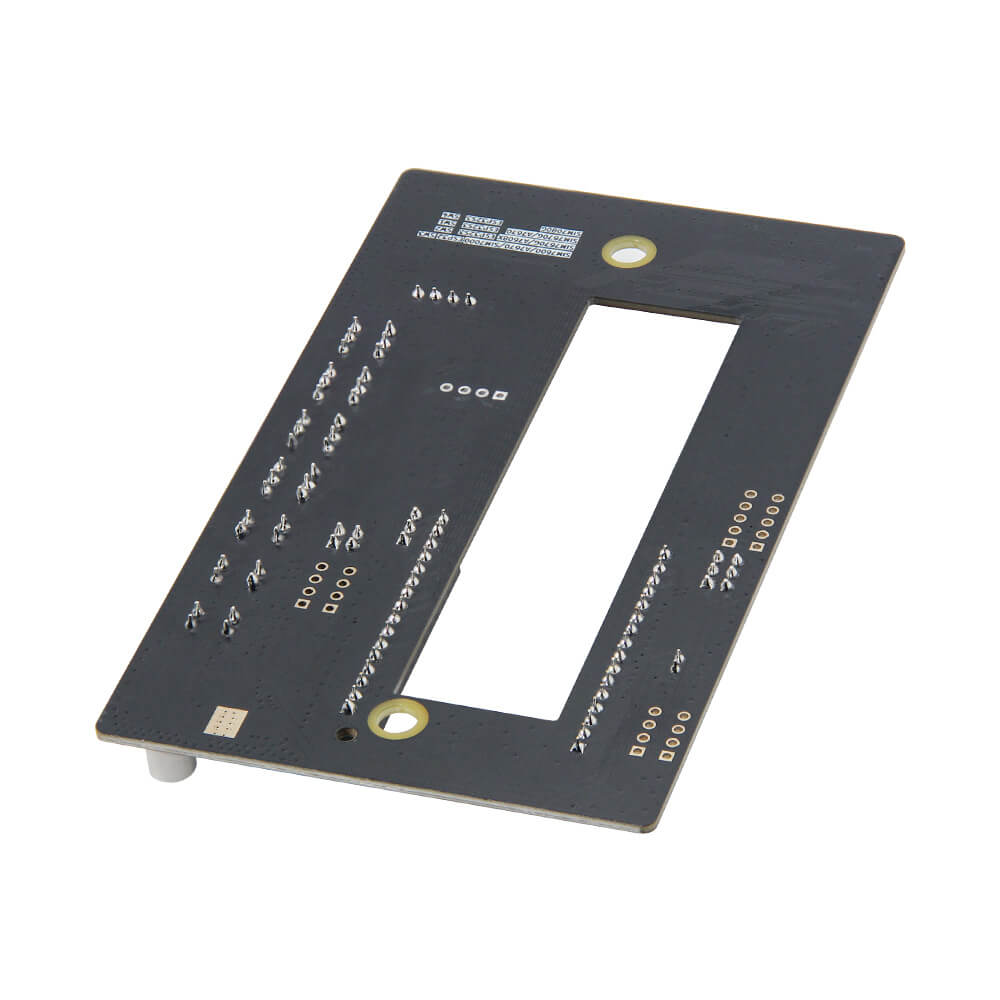

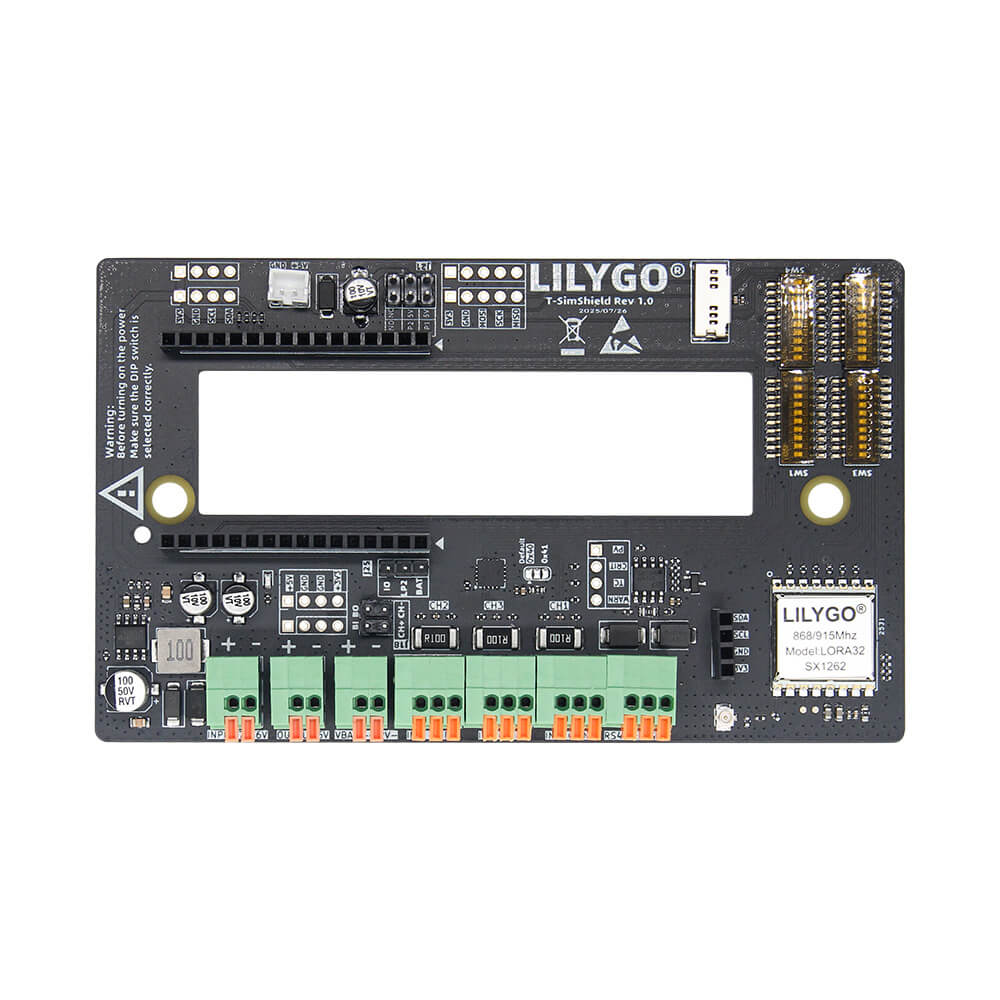

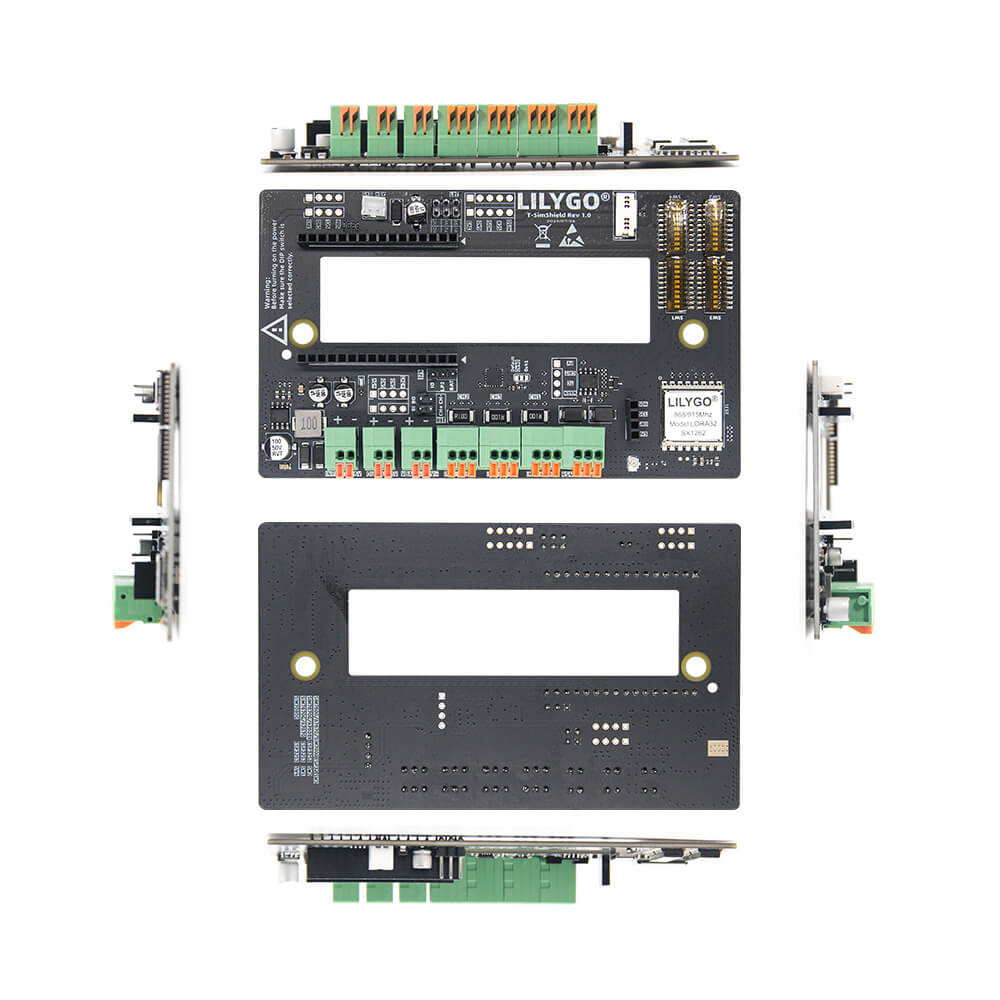

LILYGO T-SIM Shield

Overview

The LILYGO T-SIM Shield is an add-on cellular modem module from LILYGO's modem series, designed to extend compatible LILYGO development boards with cellular connectivity. It is available in five frequency configurations: 915 MHz, 868 MHz, 433 MHz, 920 MHz, and 923 MHz, covering the major regional cellular bands used in North America, Europe, Asia-Pacific, and Japan.

As a shield-style accessory, the T-SIM Shield stacks or connects to a host development board, providing SIM card-based cellular communication without requiring a dedicated cellular-capable board. This makes it a cost-effective way to add cellular IoT capabilities to existing T-Beam or other compatible LILYGO platforms.

Detailed technical specifications including the specific cellular modem chip and supported network standards (LTE-M, NB-IoT, 2G, etc.) are available in the LILYGO GitHub repository. The shield weighs 95 grams and includes all components needed for immediate deployment.

Compatible Boards

This shield is compatible with LILYGO boards that feature the standard expansion interface. Check the GitHub repository for a compatibility matrix and connection guide.
