LILYGO T-MixRF

Overview

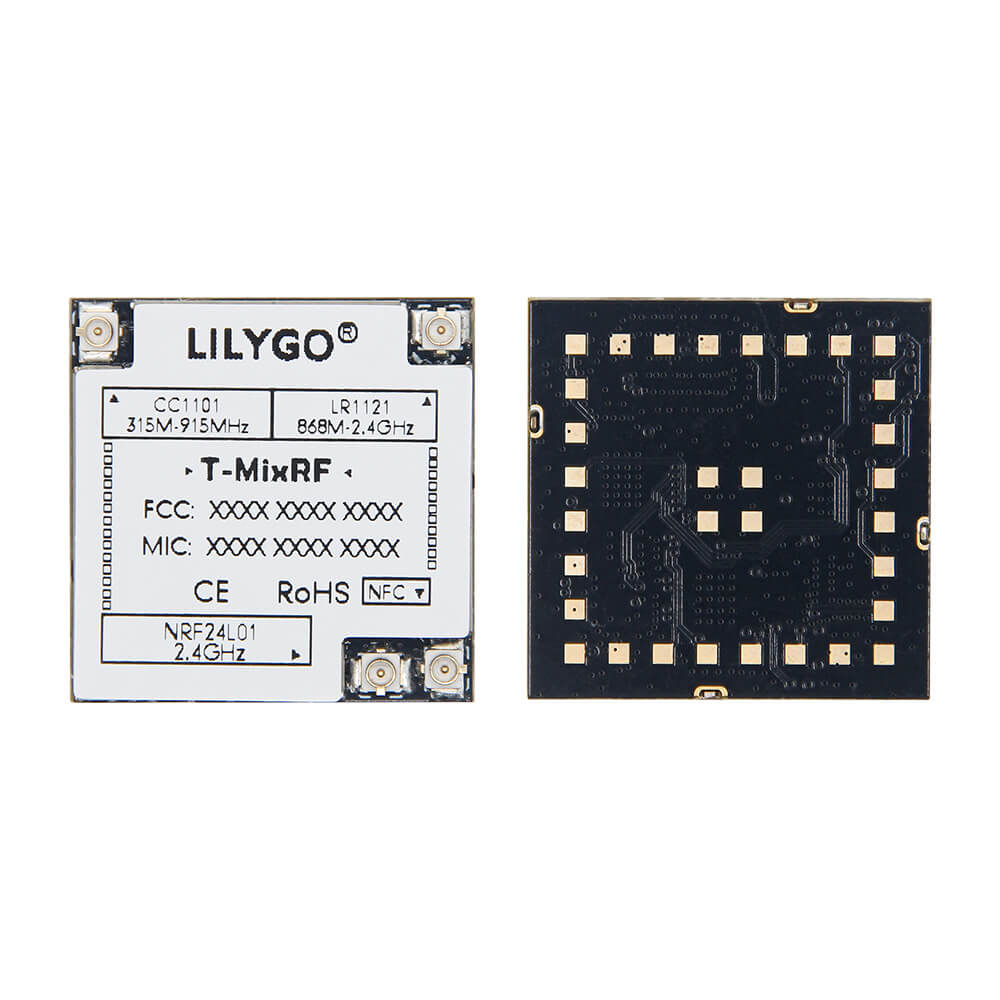

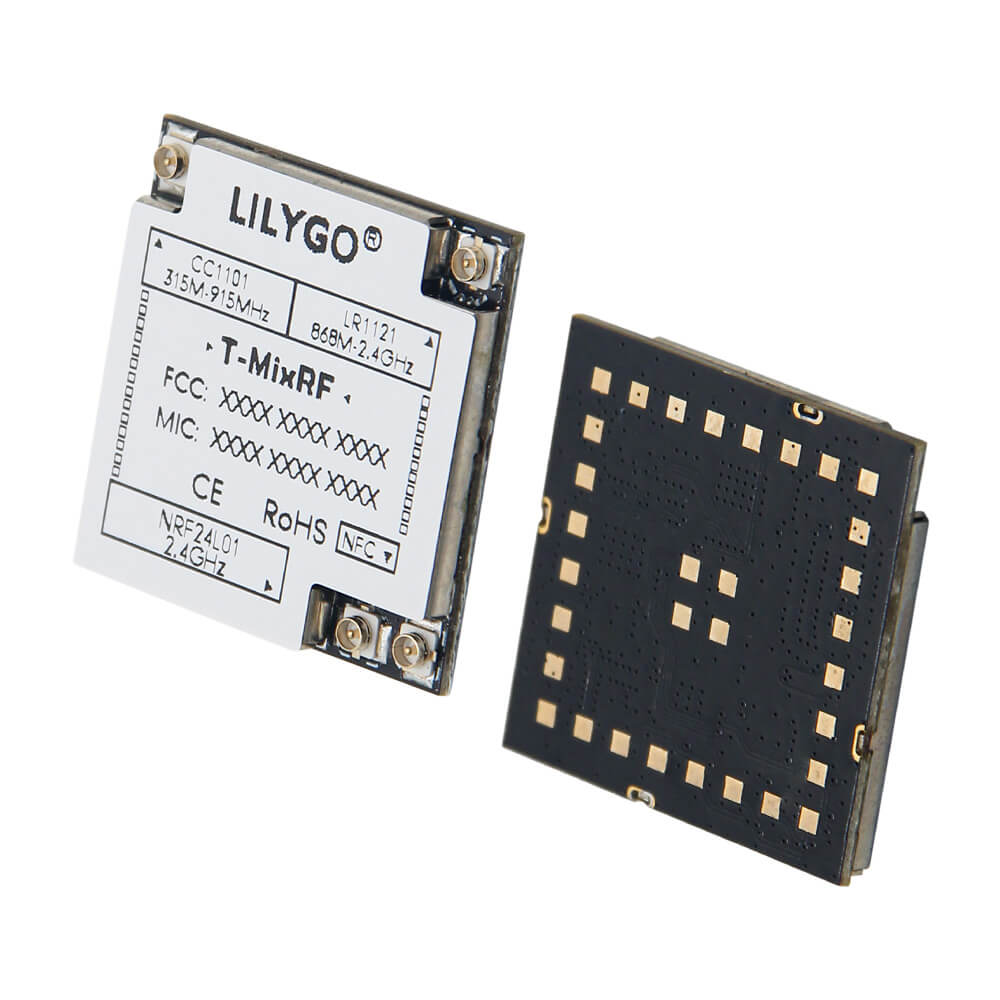

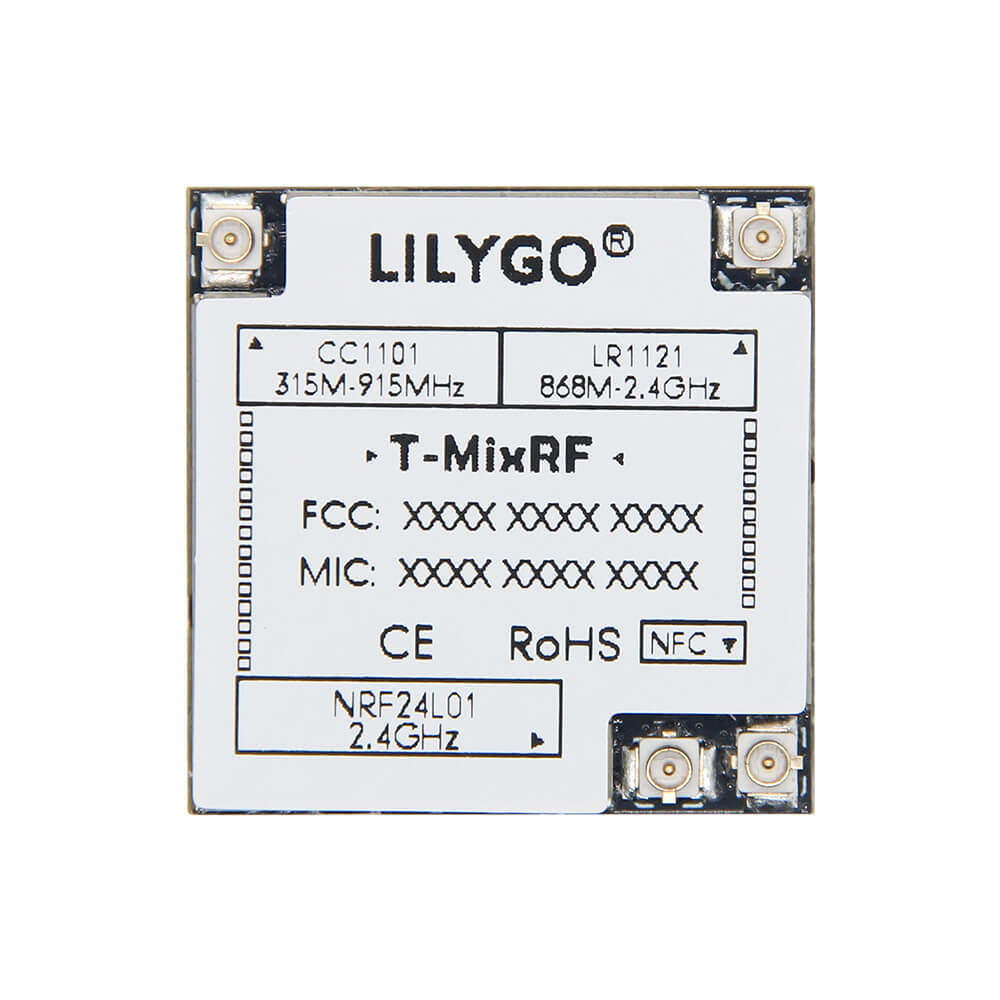

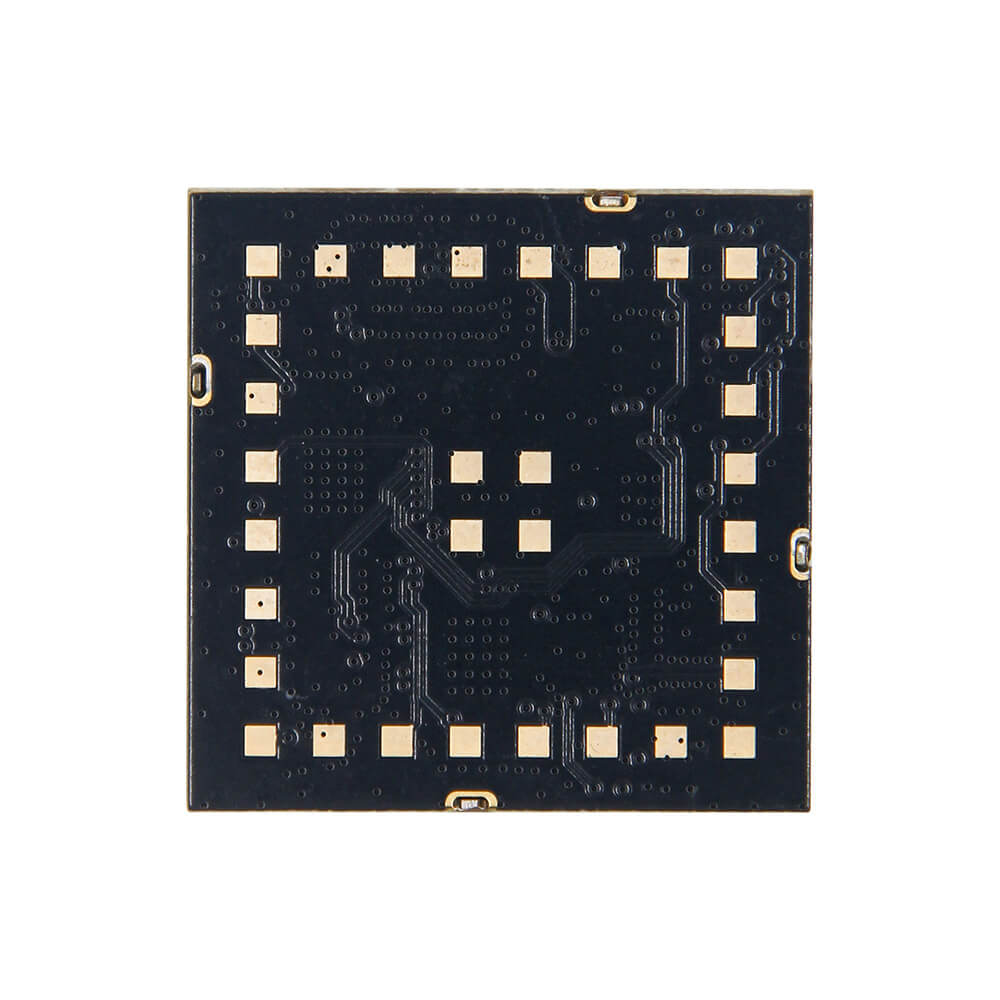

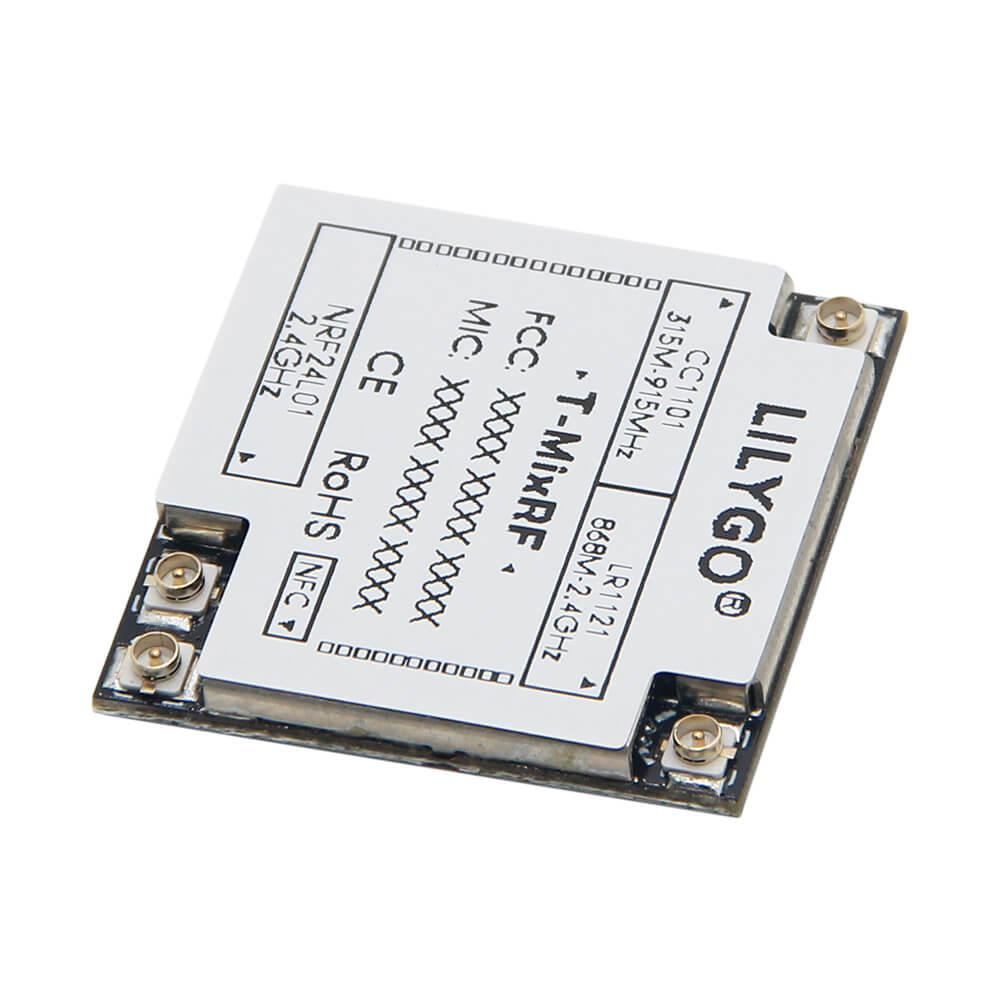

The LILYGO T-MixRF is a multi-protocol RF development board designed for engineers, students, and makers working on radio frequency applications. The "MixRF" designation indicates mixed or multi-band RF capability, making it suitable for projects requiring operation across different wireless protocols and frequency ranges.

At $16.34, the T-MixRF is positioned as an entry-level RF development tool within LILYGO's product lineup. Full technical specifications, including the MCU, radio chip models, GPIO pinout, and dimensions, are available in the LILYGO GitHub repository. The board supports Arduino IDE for development.

Firmware Compatibility

• Arduino — Primary development environment; example sketches available via LILYGO GitHub.
• ESP-IDF — Full SDK support if ESP32-based.

Flashing Guide

Refer to the LILYGO GitHub repository at github.com/Xinyuan-LilyGO for the T-MixRF schematic, pinout diagram, and example firmware. Connect via the board's USB connector and follow the platform-specific flashing instructions provided in the repository.
