# NanoPi R5S-LTS

> RK3568B2 router board with quad-core Cortex-A55 at 2.0GHz, up to 4GB RAM, 32GB eMMC, native GbE + dual 2.5GbE, M.2 PCIe, 2x USB 3.0, HDMI 4K, and USB-C PD — the mid-range OpenWrt router with long-term support.

## Quick Facts

- **Brand:** FriendlyElec
- **Board Type:** sbc
- **Price:** ~$87
- **Product Readiness:** consumer
- **CPU:** ARM Cortex-A55 4x2.0GHz, RK3568B2
- **CPU Architecture:** ARM Cortex-A55
- **CPU Cores:** 4
- **RAM:** 2GB/4GB LPDDR4X
- **Flash:** 8GB/32GB eMMC 5.1
- **USB:** 2x USB 3.0 Type-A,USB-C PD
- **Power:** USB-C PD (5V/9V/12V)
- **Operating Voltage:** 3.3V
- **Operating Temp:** 0°C to 70°C
- **Dimensions:** 62 × 90mm
- **Weight:** 57g
- **Antenna:** M.2 for WiFi
- **SD Card:** microSD

## Connectivity

- **Ethernet:** 1x Gigabit, 2x 2.5 Gigabit

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** No

## Compatible Firmware

arduino

## Use Cases

- iot-gateway
- wired-networking
- iot

## Components

- **RK3568B2** (mcu): Rockchip RK3568B2 quad-core Cortex-A55 at 2.0GHz with Mali-G52 GPU, 0.8 TOPS NPU, and PCIe 3.0. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fopensource.rock-chips.com%2Fimages%2F9%2F97%2FRockchip_RK3568_Datasheet_V1.3-20220309.pdf&ref=openhardware.directory&product=nanopi-r5s-lts&source=md-export)

## Protocols

- **UART**: notes: Debug UART 3-pin header

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO1 | Debug TX | UART | digital-output |
| GPIO2 | Debug RX | UART | digital-input |

## Description

## Overview

The NanoPi R5S-LTS is FriendlyElec's long-term support router board built on the Rockchip RK3568B2 with four Cortex-A55 cores at 2.0GHz. It provides three Ethernet ports — one native Gigabit and two PCIe 2.5 Gigabit via RTL8125BG — offering significant throughput improvement over the R4S generation.

With up to 4GB LPDDR4X RAM, 32GB eMMC, an M.2 PCIe 2.0 slot for NVMe or WiFi, two USB 3.0 ports, and HDMI 4K output, the R5S-LTS serves as both a high-performance router and a capable home server. The 0.8 TOPS NPU enables lightweight AI inference tasks.

The LTS designation ensures long-term kernel and firmware support from FriendlyElec. Running FriendlyWrt (OpenWrt), Ubuntu, Debian, or Alpine Linux, it's ideal as a VPN gateway, firewall, NAS controller, or home automation hub.

## Where to Buy

- [FriendlyElec](https://openhardware.directory/r?to=https%3A%2F%2Fwww.friendlyelec.com%2Findex.php%3Froute%3Dproduct%2Fproduct%26product_id%3D287&ref=openhardware.directory&product=nanopi-r5s-lts&source=md-export) — $87.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.friendlyelec.com%2Findex.php%3Froute%3Dproduct%2Fproduct%26product_id%3D287&ref=openhardware.directory&product=nanopi-r5s-lts&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.friendlyelec.com%2Fwiki%2Findex.php%2FNanoPi_R5S-LTS&ref=openhardware.directory&product=nanopi-r5s-lts&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Ffriendlyarm%2Fsd-fuse_rk356x&ref=openhardware.directory&product=nanopi-r5s-lts&source=md-export)

## Tags

`friendlyelec`, `nanopi`, `rk3568`, `router`, `2.5gbe`, `openwrt`, `lts`

## Images

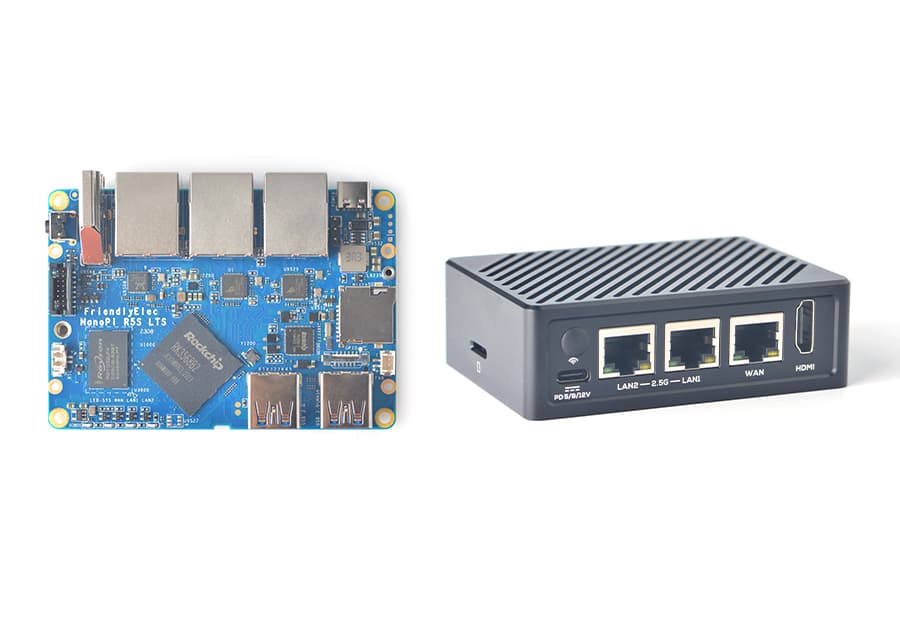

![NanoPi R5S-LTS](https://nbg1.your-objectstorage.com/openhardware-directory/entities/nanopi-r5s-lts/b39f87fb6a14.jpg)

---
