# NanoPi R2S Plus

> Enhanced RK3328 dual-GbE router with quad-core Cortex-A53 at 1.4GHz, 1GB DDR4, 32GB eMMC onboard, dual Gigabit Ethernet, optional WiFi, and metal case — the R2S upgrade with built-in storage for reliable OpenWrt routing.

## Quick Facts

- **Brand:** FriendlyElec
- **Board Type:** sbc
- **Price:** ~$30
- **Product Readiness:** consumer
- **CPU:** ARM Cortex-A53 4x1.4GHz, RK3328
- **CPU Architecture:** ARM Cortex-A53
- **CPU Cores:** 4
- **RAM:** 1GB DDR4
- **Flash:** 32GB eMMC 5.1
- **USB:** 2x USB 2.0,USB-C (power)
- **Power:** 5V/2A via USB-C
- **Operating Voltage:** 3.3V
- **Dimensions:** 62.5 × 63.5mm (with case)
- **Weight:** 145g (with case)
- **Antenna:** M.2 SDIO for WiFi
- **SD Card:** microSD (up to 128GB)

## Connectivity

- **Ethernet:** 2x Gigabit

## Open Source

- **Firmware:** Yes
- **Schematics:** Yes
- **PCB Layout:** No

## Compatible Firmware

arduino

## Use Cases

- iot-gateway
- wired-networking
- iot

## Components

- **RK3328** (mcu): Rockchip RK3328 quad-core Cortex-A53 at 1.4GHz with Mali-450 GPU. — [Datasheet](https://openhardware.directory/r?to=https%3A%2F%2Fopensource.rock-chips.com%2Fimages%2Fd%2Fd7%2FRockchip_RK3328_Datasheet_V1.2-20170321.pdf&ref=openhardware.directory&product=nanopi-r2s-plus&source=md-export)

## Protocols

- **UART**: notes: Debug UART via USB-C

## GPIO Map

| Pin | Name | Type | Functions |
|-----|------|------|-----------|
| GPIO1 | Debug TX | UART | digital-output |

## Description

## Overview

The NanoPi R2S Plus improves on the popular R2S by adding 32GB eMMC 5.1 onboard storage, eliminating the need for a microSD card and improving boot reliability and I/O performance. The same Rockchip RK3328 quad-core Cortex-A53 at 1.4GHz with 1GB DDR4 provides proven routing performance.

Dual Gigabit Ethernet ports (one native RTL8211F, one USB 3.0 RTL8153B) handle WAN/LAN routing, while an optional M.2 SDIO WiFi module adds wireless AP capability. Two USB 2.0 ports, dual USB-C connectors (power + debug UART), and a metal case complete the package.

At $30, the R2S Plus is an excellent value for a turnkey OpenWrt router, VPN gateway, or network monitoring appliance. The onboard eMMC means the system survives microSD card failures that can plague long-running network appliances.

## Where to Buy

- [FriendlyElec](https://openhardware.directory/r?to=https%3A%2F%2Fwww.friendlyelec.com%2Findex.php%3Froute%3Dproduct%2Fproduct%26product_id%3D296&ref=openhardware.directory&product=nanopi-r2s-plus&source=md-export) — $30.00

## Resources

- [product](https://openhardware.directory/r?to=https%3A%2F%2Fwww.friendlyelec.com%2Findex.php%3Froute%3Dproduct%2Fproduct%26product_id%3D296&ref=openhardware.directory&product=nanopi-r2s-plus&source=md-export)
- [wiki](https://openhardware.directory/r?to=https%3A%2F%2Fwiki.friendlyelec.com%2Fwiki%2Findex.php%2FNanoPi_R2S-Plus&ref=openhardware.directory&product=nanopi-r2s-plus&source=md-export)
- [github](https://openhardware.directory/r?to=https%3A%2F%2Fgithub.com%2Ffriendlyarm%2Fsd-fuse_rk3328&ref=openhardware.directory&product=nanopi-r2s-plus&source=md-export)

## Tags

`friendlyelec`, `nanopi`, `rk3328`, `router`, `openwrt`, `emmc`, `dual-gbe`

## Images

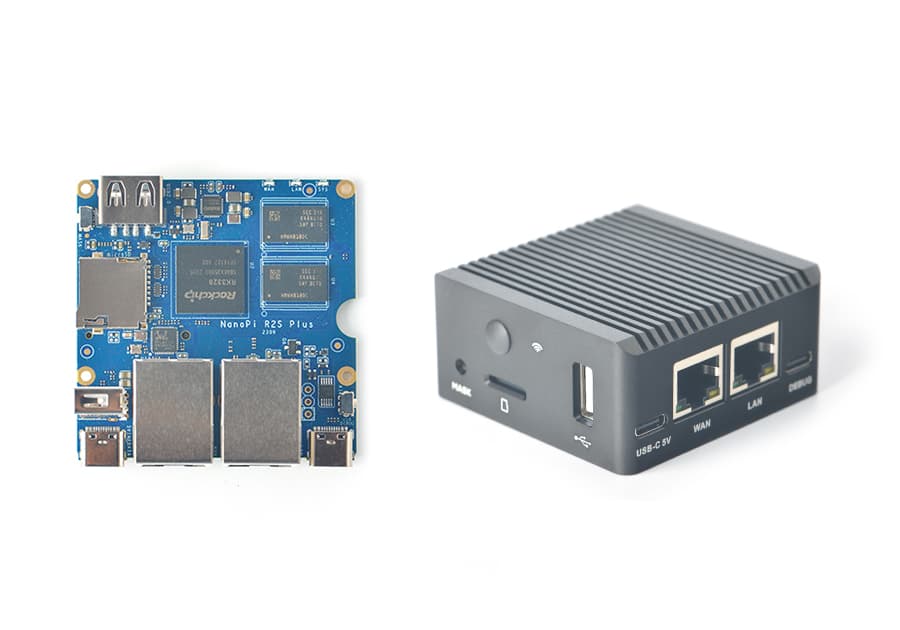

![NanoPi R2S Plus](https://nbg1.your-objectstorage.com/openhardware-directory/entities/nanopi-r2s-plus/2a5f64407edf.jpg)

---
